MPX2010 Pressure Sensor

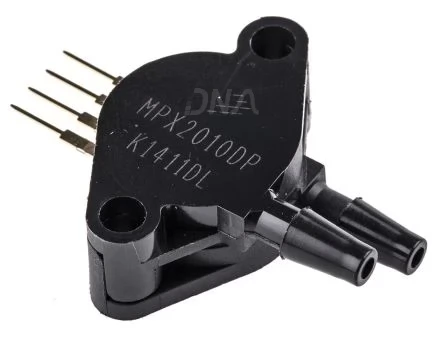

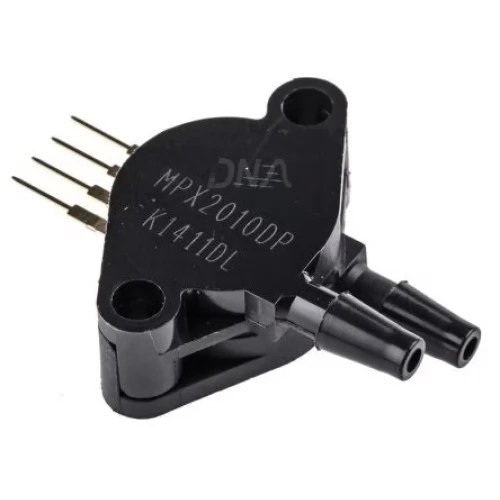

The MPX2010DP is a differential, dual port silicon pressure sensor in 4 pin SIP package.

This piezoresistive pressure sensor provides very accurate and linear voltage output directly proportional to applied pressure. It includes on-chip integrated strain gauge and thin film resistor network . The sensor is laser trimmed for precise span, offset calibration and temperature compensation.

MPX2010 Pressure Sensor Features

• On-chip temperature compensated and calibrated

• Pressure range from 0KPa to 10KPa

• 25mV full scale voltage

• Temperature compensated over 0°C to 85°C

• Ratiometric to supply voltage

• Sensitivity of 2.5mV/KPa

• Response time of 1ms

• Pressure hysteresis of ±0.1%VFSS

• Supply voltage range from 10VDC to 16VDC

• Operating temperature range from -40°C to 125°C

MPX2010 Pressure Sensor Specification

• Pressure Type : Differential

• Operating Pressure : 1.45 PSI (10 kPa)

• Output Type : Wheatstone Bridge

• Output : 0 mV ~ 25 mV (10V)

• Accuracy : ±1%

• Voltage - Supply : 10 V ~ 16 V

• Port Size : Male - 0.19" (4.93mm) Tube, Dual

• Port Style : Barbed

• Features : Temperature Compensated

• Termination Style : PCB

• Maximum Pressure : 10.88 PSI (75 kPa)

• Operating Temperature : -40°C ~ 125°C

• Package / Case : 4-SIP Module


MPX2010 Pressure Sensor Applications

• Sensing & Instrumentation
• Consumer Electronics
• Medical
