Product Images are shown for illustrative purposes only and may differ from actual product.

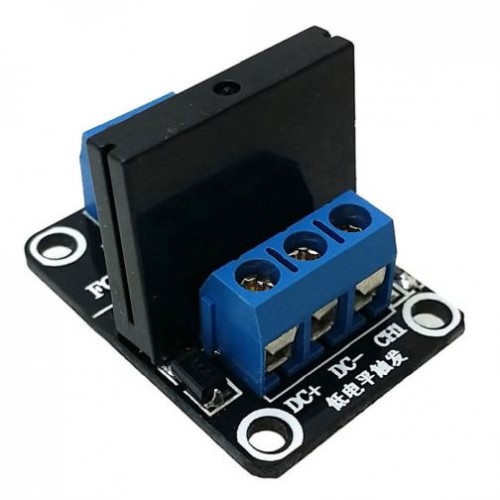

1 Channel 5 Volts SSR Module

Write a review | 1 reviews

Stock: 1

SKU: 1636 | DAB295

Rs. 155.76 (inc GST)
Rs.132.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

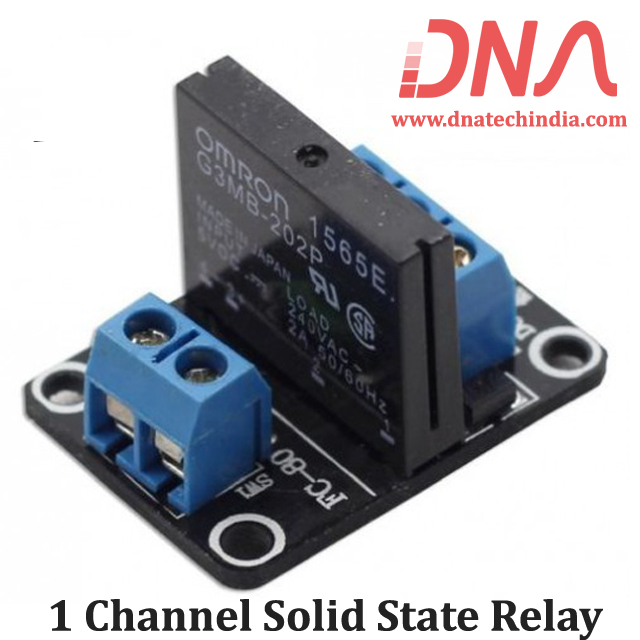

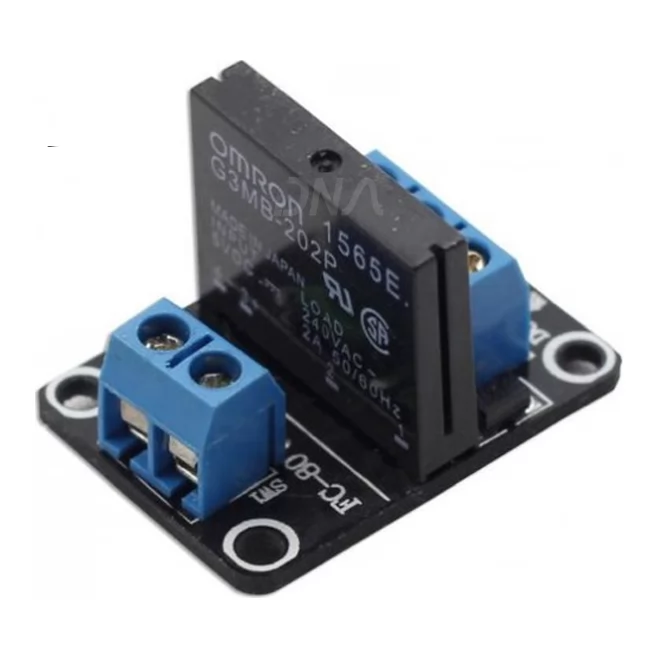

1 Channel 5 volts Solid State Relay

One Channel 5 volts Solid State Relay Module (SSR Module)

1-Channel Solid-State Relay is some what similar to that of a mechanical relay & the difference is that, there is no moving contact in a Solid-State Relay. Here we make use of Phototriac coupler to turn it ON and OFF.

Solid state relays do have several advantages over mechanical relays. One such advantage is that they can be switched by a much lower voltage and at a much lower current than most mechanical relays. Also, because there’s no moving contacts, solid state relays can be switched much faster and for much longer periods without wearing out.

This one channel 5 volts SSR module is capable of switching an AC voltage between 100 and 240 Volts at up to a 2 ampere current. The module can be controlled from 5 Volt digital source such as an Raspberry Pi, Arduino or any other 5 volt microcontroller.

We have various types of Relay & SSR Modules which you can use to control appliances. Check out our complete collection of MOSFET, SSR & Relay Modules. We also have various types of high quality Relays & SSR.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Specifications of One Channel 5 Volts SSR Module

Rated output load : 100V ~ 240V AC (50Hz/ 60Hz) 2 Ampere
Rated input voltage : 5 Volts
Triggered at Low level
LED showing Solid-State Relay status
Input control signal :
Low Signal (Solid-State Relay ON / CLOSED)
High Signal (Solid-State Relay OFF / OPEN)
Screw terminals for better & secure connection

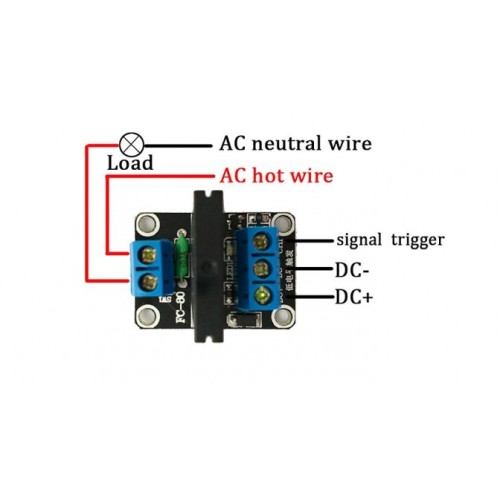

Input for SSR Module

DC + : connected to positive power source (supply power according to the relay voltage)
DC - : connected to negative power source
CH1: 1- channel relay module signal triggering end (effective at high level)

Package Includes:

1 x One Channel 5 volts Solid State Relay Module
