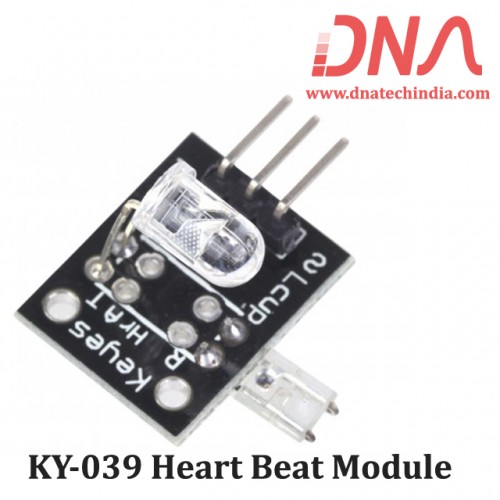

KY-039 Heart Beat Module

Write a review | 0 reviews

Stock: 18
Availability: InStock priceValidUntil: 2026-08-26
Brand: Generic
SKU: 600 | DAA754

Rs. 177.00 (inc GST)
Rs.150.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

KY-039 Heart Beat Module

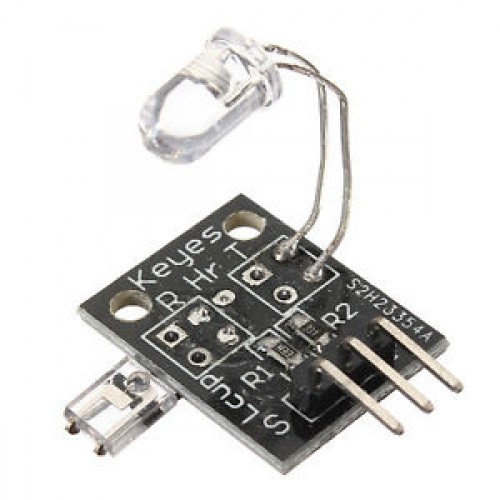

Finger Detect Heart Beat Module

Ky-039 is a Low cost Heart beat Sensing Module. This Heart beat detection module uses bright infrared (ir) led and a photo-transistor to detect the pulse of the finger, a red led flashes with each pulse. Pulse monitor works as follows: the led is Turned ON on one side of the finger, and photo-transistor is on the other side of the finger. The photo-transistor used to obtain the flux emitted, when the blood flows through the finger then the resistance of the photo-transistor will be vary slightly.

The most important is to keep the shield stray light into the photo-transistor. For home lighting that is particularly important because the lights at home mostly based 50hz or 60hz fluctuate, so faint heartbeat will add considerable noise.

We have Various sizes of Sensor Modules. Check out our complete collection of Sensor Modules

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Connecting Heart Beat Module to Arduino

Sensor pin S connect to Arduino pin Analog 0 / A0
Sensor pin + (middle pin) connect to Arduino pin 5+
Sensor pin - connect to Arduino pin GND

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
