Product Images are shown for illustrative purposes only and may differ from actual product.

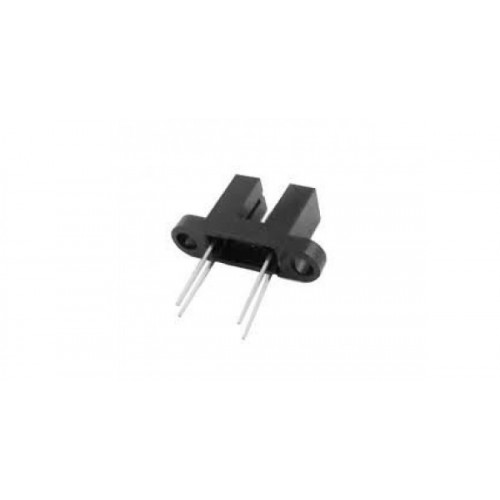

HY860D Photo Interrupter


Write a review | 1 reviews

  • Stock: 163

    Availability: InStock priceValidUntil: 2026-09-12

  • SKU: 675 | DAE045

Availability: InStock priceValidUntil: 2026-09-12

  • Rs. 37.76 (inc GST)
    Rs.32.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

HY860D Photo Interrupter

HY860D Photo Interrupter Features a built-in bracket for easy mounting.

Consisted of an infrared emitter and a photo-transistor, is located face-to-face on the optical axes in a leaded package. During operation, output photo-transistor switch from ON state to OFF state when object is inserted into gap between emitter and sensor. HY860D is used for object detection and automatic counting, such as printer, scanner, copy machine, facsimile machine and vending machine, etc.

Features of HY860D Photo Interrupter

  • Output Type : Photo Transistor

  • Peak Emission Wavelength : 940nm

  • IR Diode Forward Current : 50mA

  • IR Diode Reverse Voltage : 5V

  • Transistor Power Dissipation : 75mW

  • Transistor Collector Current : 20mA

  • Photo Transistor Collector-emitter Voltage : 30V

  • Photo Transistor Emitter-collector Voltage : 5V

  • Diode Power Dissipation : 100mW

  • Operating Temperature Range : -55~100 Celsius Degree

  • Number of Pins : 4

  • Slot Width : 4.2mm/11/64''

  • Slot Depth : 8mm/0.3''

  • Pin Length : 11mm/0.4''

  • Pitch : 9mm/0.35'', 2.5mm/0.1''

  • Hole Dia. : 3mm/0.12''

  • Total Size : 22 x 22 x 6mm/0.9'' x 0.9'' x 0.2''(L*W*H)

  • Material : Plastic, Metal

  • Color : Black

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
