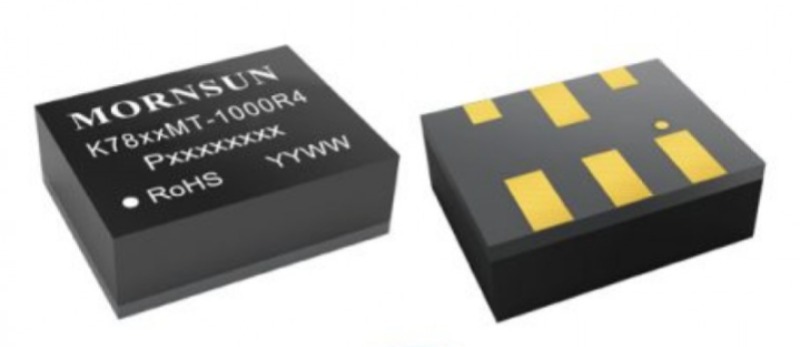

MORNSUN K7805MT-1000R4 5V DC/DC Converter Module

  • Stock: 50

    Availability: InStock priceValidUntil: 2026-12-20

  • Brand: Mornsun
  • SKU: 7374 | DAH307

Availability: InStock priceValidUntil: 2026-12-20

  • Rs. 113.28 (inc GST)
    Rs.96.00 + GST
    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

MORNSUN K7805MT-1000R4 5V DC/DC Converter Module

K7805MT-1000R4 non-isolated DC/DC converter module with 6.5–36 VDC input, regulated 5 VDC output and up to 1 A output current.

The MORNSUN K7805MT-1000R4 is a non-isolated, regulated switching module that converts a 6.5–36 VDC input to a positive 5 VDC output at up to 1 A. Its compact DFN package suits designs that need a small 5 V DC/DC converter module.
The module has continuous, self-recovering short-circuit protection and an input control pin for on/off operation. Output voltage trim allows adjustment around the nominal output. These functions help engineers adapt the converter to different circuit needs.
For industrial control, instrumentation and electric power equipment, the K7805MT-1000R4 provides a regulated 5 V rail from a wider DC input. Its small footprint helps fit power conversion into compact electronic assemblies.
DNA stocks MORNSUN power modules for electronics design and repair. Browse our DC to DC Converter Modules to find options for your power conversion needs. Check other DC to DC Converter Modules that we have in stock
For Indian electronics buyers, DNA can help if you cannot find the part you need. Ask us about import support and retail or bulk orders. You can also explore power supplies, sensors, MOSFETs and DC to DC converter ICs. Contact Us

Features of MORNSUN K7805MT-1000R4 5V DC/DC Converter Module

  • Non-isolated regulated switching conversion
  • Continuous, self-recovering short-circuit protection
  • Input control pin supports on/off operation
  • Output voltage trim supports adjustment around the nominal output
  • Compact DFN package

Specifications of MORNSUN K7805MT-1000R4 5V DC/DC Converter Module

  • Input voltage range: 6.5–36 VDC (24 VDC nominal)
  • Output voltage: 5 VDC, positive
  • Maximum output current: 1000 mA
  • Full-load efficiency: 92% at 6.5 V input, 87% at 24 V input and 84% at 36 V input
  • Output ripple and noise: 75 mVp-p typical, 150 mVp-p maximum
  • Switching frequency: 1.0 MHz typical (nominal input, full load)
  • Operating temperature: −40°C to +105°C (output power derating applies)
  • Package and dimensions: DFN, 9.00 × 7.00 × 3.10 mm

Applications of MORNSUN K7805MT-1000R4 5V DC/DC Converter Module

  • Industrial control
  • Instrumentation
  • Electric power

Related Links for MORNSUN K7805MT-1000R4 5V DC/DC Converter Module

Package Includes

  • 1 X MORNSUN K7805MT-1000R4 5V DC/DC Converter Module
Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
