Arduino Pro Micro 5V/16M

  • Product Code: 0485
  • Availability: 1
  • Price :

    Rs.554.60 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

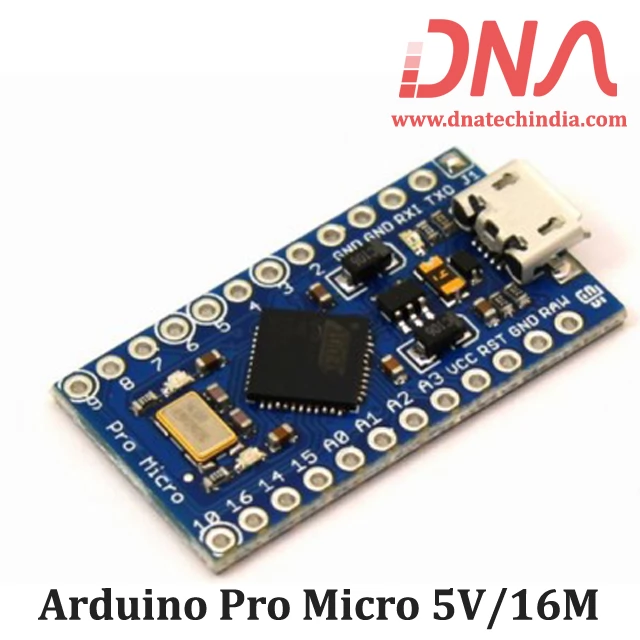

Arduino Pro Micro 5V/16M

This is an Arduino Compatible Pro Micro ATmega32U4 5V 16MHz Compatible Board. The Arduino Pro Micro is a microcontroller board based on the ATmega32U4. It is similar to the Pro Mini, but with an ATmega32U4 on board. The USB transceiver inside the ATmega32U4 means no bulky external USB interface chip is required!
It has 4 channels of 10-bit ADC, 5 PWM pins, 12 DIOs as well as hardware serial connections Rx and Tx. Running at 16MHz and 5V, this board is very similar to the popular Uno, but much more compact. There is a voltage regulator on board so it can accept voltage up to 12VDC. If you're supplying unregulated power to the board, be sure to connect to the "RAW" pin on not VCC.
Features of Arduino Pro Micro
  • ATmega32U4 running at 5V/16MHz
  • Supported under Arduino IDE v1.0.1
  • On-Board micro-USB connector for programming
  • 4 x 10-bit ADC pins
  • 12 x Digital I/Os (5 are PWM capable)
  • Rx and Tx Hardware Serial Connections
  • Over current protected
  • Reverse polarity protected
  • DC input 5V up to 12V
  • On board Power and Status LEDs
  • Size:33mm x 18 mm x 6mm

Note: This is a Arduino Clone and not original Arduino
