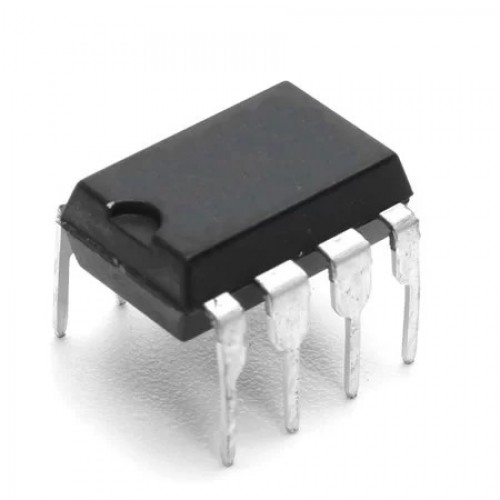

SD6830 DIP-8 Control Chip PWM Controller DIP IC


Write a review | 2 reviews

  • Stock: 5

    Availability: InStock priceValidUntil: 2026-03-04

  • SKU: 7391 | DAH158

Availability: InStock priceValidUntil: 2026-03-04

  • Rs. 53.10 (inc GST)
    Rs.45.00 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SD6830 DIP-8 Control Chip PWM Controller DIP IC

SD6830 DIP-8 Control Chip PWM Controller DIP IC

The SD6830 Is a highly integrated current mode PWM+PFM Control chip. Built-in oscillator, built-in high-voltage tube and frequency reduction function, IC With complete self-recovery protection function. The power controller works in a typical flyback topology circuit, which constitutes a concise AC/DC Power converter. in 85V-265V Available in a wide voltage range 12W of Continuous output power. The SD6830 integrates several features designed to optimize performance, improve efficiency, and reduce component count in SMPS designs. It operates in primary-side regulation (PSR) mode, eliminating the need for optocouplers and feedback circuits, which simplifies the overall design.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of  IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SD6830 DIP-8 Control Chip PWM Controller DIP IC

  • Built-in oscillator.
  • Built-in 700V High voltage power switch.
  • Quick high pressure start.
  • Low starting current and low operating current.
  • Green frequency reduction function, low standby power consumption.
  • Comprehensive self-recovery protection functions: overvoltage, under voltage, short circuit, overload and overtemperature protection.
  • Accurate temperature compensation, precise cycle-by-cycle current control.

Specifications of SD6830 DIP-8 Control Chip PWM Controller DIP IC

  • Input Voltage Range: Designed for universal input AC voltage, typically 85V to 265V AC, for global use.
  • Switching Frequency: Approximately 65 kHz, with frequency jittering to reduce EMI.
  • Standby Power Consumption: Typically <100mW, making it suitable for low-power applications.
  • Output Power: Can support power outputs ranging from a few watts up to around 24W, depending on the specific application.
  • Output Regulation: Tight output voltage regulation, especially in primary-side control applications.

    Package Includes

    • 1 x SD6830 DIP-8 Control Chip PWM Controller DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
