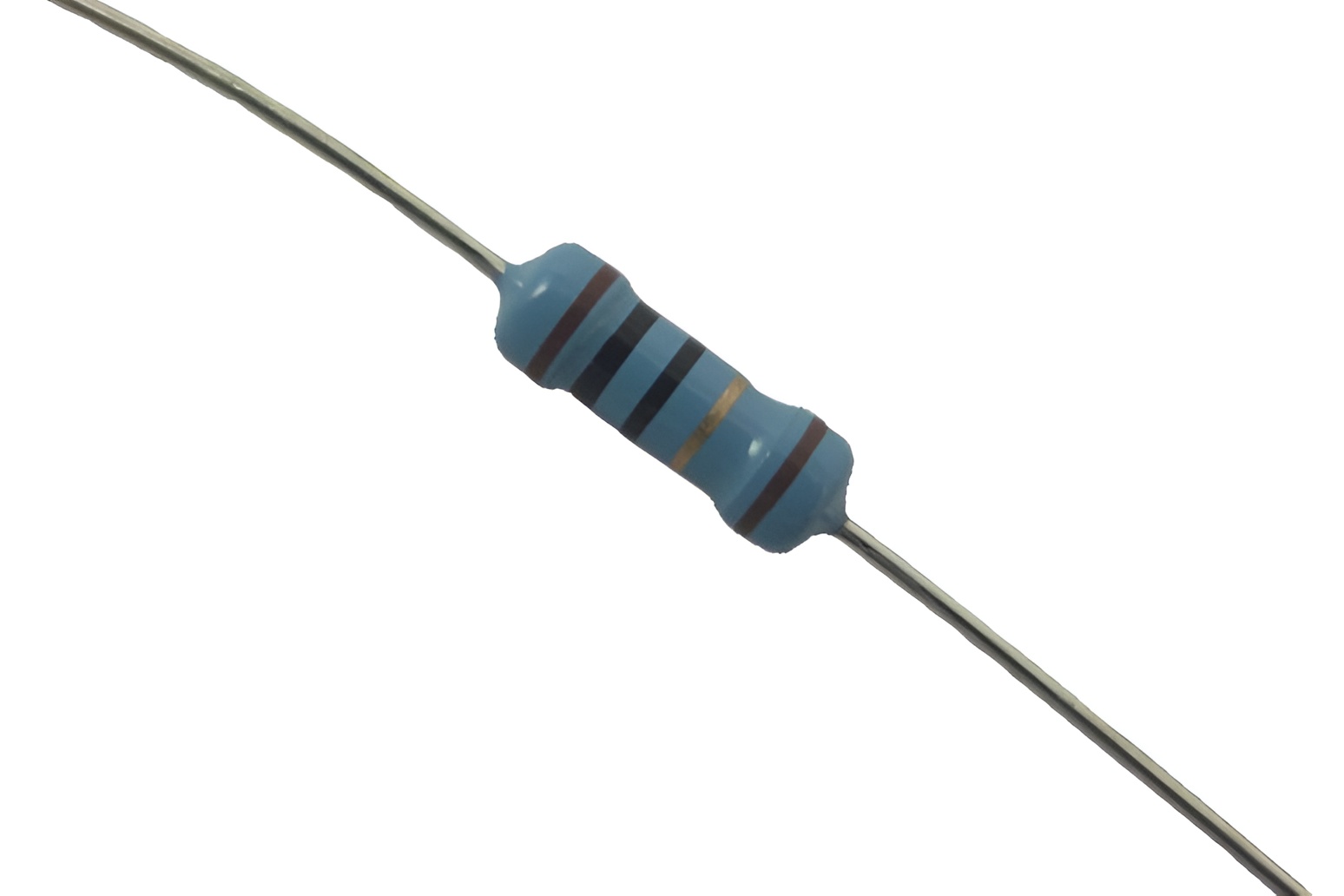

LR0204F100R 100OHM Resistor Axial Metal Film

LR0204F100R 100OHM Resistor Axial Metal Film

The LR0204F100R is a 100-ohm axial metal film resistor designed for precision and reliability in electronic circuits. Manufactured by TE Connectivity, it is engineered to deliver stable resistance values and low noise performance under varying operating conditions. it offers precise resistance and reliable performance in various electronic applications.

DNA solutions, Nashik has various types of Resistor's. Check out our complete collection of Resistor's.

• Resistance Value: 100 ohms

• Power Rating: 0.25 watts (250 mW)

• Tolerance: ±1%

• Temperature Coefficient: ±100 ppm/°C

• Maximum Working Voltage: 200 V

• Operating Temperature Range: -55°C to +155°C

• Dimensions: 2 mm diameter x 3.5 mm length

Specifications of LR0204F100R 100OHM Resistor Axial Metal Film

• Resistor Type: General-purpose metal film resistor

• Construction: The resistive element is a thin film of nickel-chrome alloy deposited onto a high thermal conductivity ceramic core. Metal end caps are force-fitted to the element before spiraling to achieve the desired resistance value. Tinned copper lead wires are welded to the end caps, and the assembly is coated with one layer of phenolic resin followed by three layers of epoxy resin

• Lead Configuration: Axial leads for through-hole mounting

Applications of LR0204F100R 100OHM Resistor Axial Metal Film

• Signal Processing

• Precision Circuits

• General Electronics

Package Includes

      1 x LR0204F100R 100OHM Resistor Axial Metal Film
