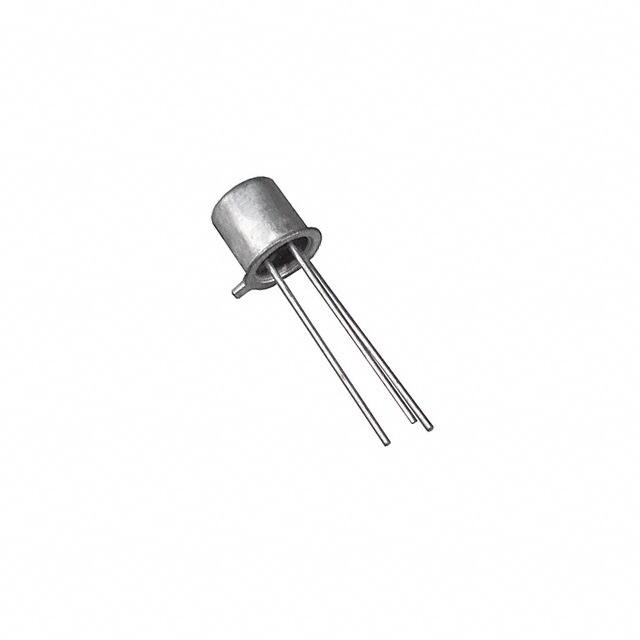

2N2222 Amplifier Transistor(TO-18)

Write a review | 0 reviews

Stock: 6

SKU: 0822 | DAA283

Rs. 17.70 (inc GST)
Rs.15.00 + GST

Qty :
Qty

Electronic Component of the Week (ELCOW) Raspberry Pi 3B+ In Stock

GST Invoice on all Purchase. So you will be eligible to take input tax credit.
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.
Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

Description

2N2222 Amplifier Transistor

2N2222 is NPN BJT normally used in low power amplifiers and also for switching application.

2n2222 is used as a small signal transistor and used as a general purpose transistor and is very popular. This is in TO-18 Metal Can package.

Features of 2N2222 Transistor

NPN Silicon Planar Switching Transistors.
Switching and Linear application DC and VHF Amplifier applications.
Rating Symbol Value Unit
Collector–Emitter Voltage VCEO : 40 Vdc
Collector–Base Voltage VCBO : 75 Vdc
Emitter–Base Voltage VEBO : 6.0 Vdc
Collector Current — Continuous IC : 600 mAdc
Total Device Dissipation(PD) @ TA = 25°C : 625 mW
PD Derate above 25°C : 5.0 mW/°C
Total Device Dissipation(PD)@ TC = 25°C : 1.5 Watts
PD Derate above 25°C : 12 mW/°C
Operating and Storage Junction Temperature Range (TJ, Tstg) : –55 to +150 °C
Thermal Resistance, Junction to Ambient RJA : 200 °C/W
Thermal Resistance, Junction to Case RJC : 83.3 °C/W

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
