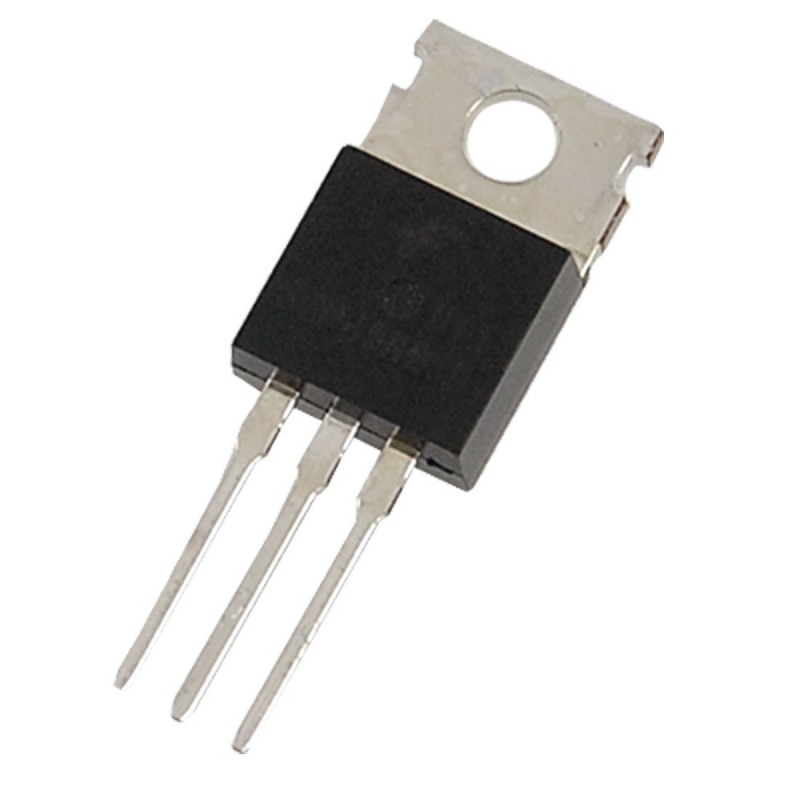

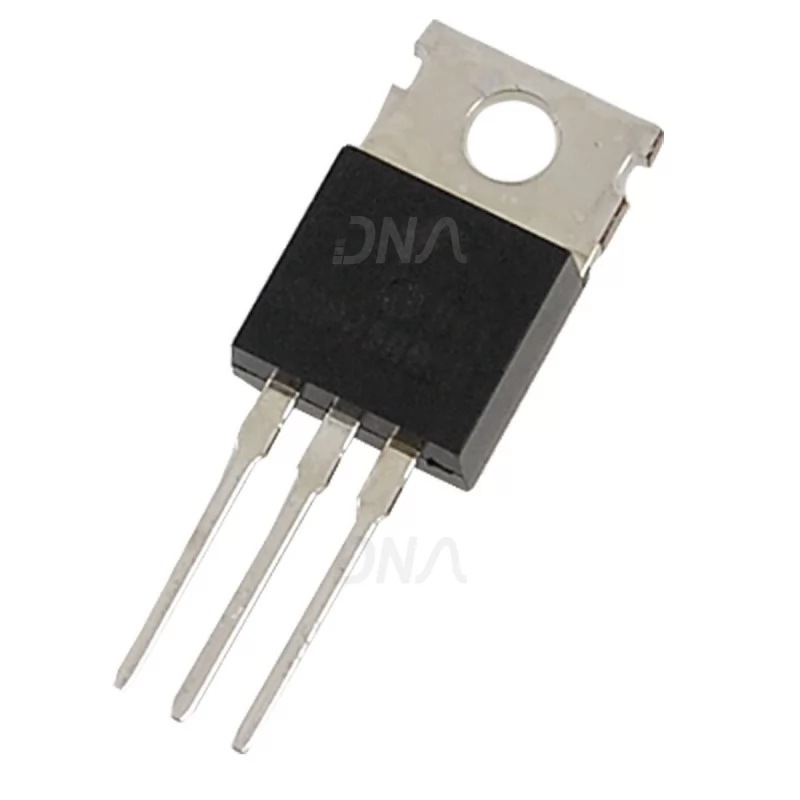

MJE13009 NPN Power Transistor
- Stock: 1
- SKU: 1023 | DAA144
-
Rs. 46.26 (inc GST)
Rs.39.20 + GSTQty :
| Also Available: PMS5003 PM2.5 AIR QUALITY SENSOR BY PLANTOWER in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
MJE13009 NPN Power Transistor
MJE13009 NPN Power Transistor for high-speed switching with VCEO 400V, 3-12A inductive load, and 700V blocking capability.
The MJE13009 NPN Power Transistor excels in high-voltage, high-speed power switching applications. It is ideal for circuits where fall time is crucial, particularly in 115V and 220V switch mode applications. This transistor suits Switching Regulators, Inverters, Motor Controls, and Solenoid drivers. Equipped with a VCEO of 400V and a blocking capability of 700V, the MJE13009 efficiently handles inductive loads up to 12A. Its fast switching time of 120 ns at 8A ensures reliable performance in critical applications. Choose the MJE13009 NPN Power Transistor for robust and efficient power management.
Explore the reliability of Diodes & Transistors from trusted brands at DNA. Our MJE13009 NPN Power Transistor is perfect for your high-voltage applications. Check other Diodes & Transistors that we have in stock.
If you're searching for specific electronic components, DNA can help. We can import hard-to-find parts and support both retail and bulk orders. Check our range of Analog ICs, Crystals, Connectors, Digital ICs, IGBTs, and Humidity & Temperature Sensors. Contact Us.
Features of MJE13009 NPN Power Transistor
- High-voltage capability
- Fast switching time
- Handles inductive loads up to 12A
- VCEO rating of 400V
- 700V blocking capability
Specification of MJE13009 NPN Power Transistor
- VCEO 400V
- Inductive Switching Matrix 3 ~ 12 Amp
- Reverse Bias SOA at TC = 100℃
- Switching time 120 ns (Typ) at 8A
- 700V Blocking Capability
Applications of MJE13009 NPN Power Transistor
- Switching Regulators
- Inverters
- Motor Controls
- Solenoid/Relay drivers
- Deflection circuits
Related Links for MJE13009 NPN Power Transistor
Package Includes
- 1 X MJE13009 NPN Power Transistor
