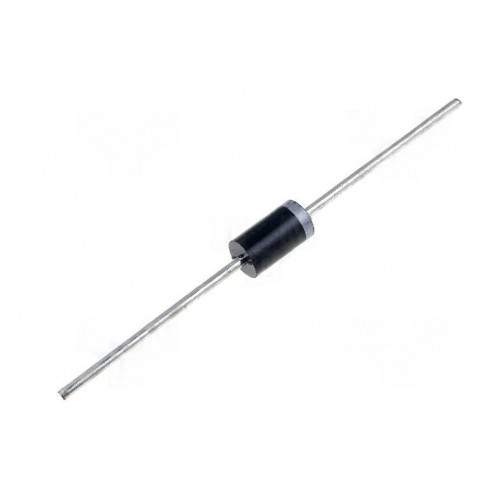

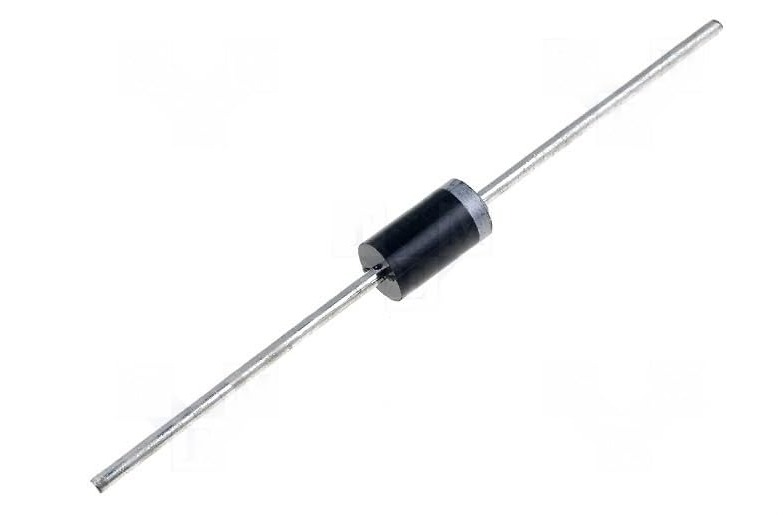

ZY120v Zenner DIODE 1 WATT

ZY120v Zenner DIODE 1 WATT

The ZY120V Zener Diode is a small semiconductor device designed to operate in the reverse breakdown region. It regulates voltage by maintaining a stable reverse breakdown voltage, making it ideal for use in power regulation circuits, voltage clamping, and protection circuits. This diode can handle up to 1 watt of power dissipation.

DNA solutions, Nashik has various types of Diodes. Check out our complete collection of  Diodes.

• Stable Voltage Regulation: Provides consistent performance at the specified breakdown voltage of approximately 120V

• High Power Handling: Rated for a 1-watt power dissipation, suitable for medium-power applications

• Compact Design: Available in a standard axial-lead package for easy integration into circuits

• Low Temperature Coefficient: Ensures minimal variation in breakdown voltage with temperature changes

Specifications of ZY120v Zenner DIODE 1 WATT

• Type: Zener Diode

• Breakdown Voltage: 120V ± 5% tolerance (depending on the manufacturer)

• Power Dissipation: 1 Watt

• Maximum Reverse Current (IR): Specified at a certain reverse voltage (e.g., 5 µA at VR = 100V)

• Temperature Coefficient: Typically ranges from +0.1%/°C to +0.05%/°C

• Operating Temperature Range: -65°C to +175°C

Applications of ZY120v Zenner DIODE 1 WATT

• Voltage Regulation

• Overvoltage Protection

• Voltage Clamping

• Power Supplies

• Signal Conditioning

Package Includes

      1 x ZY120v Zenner DIODE 1 WATT
