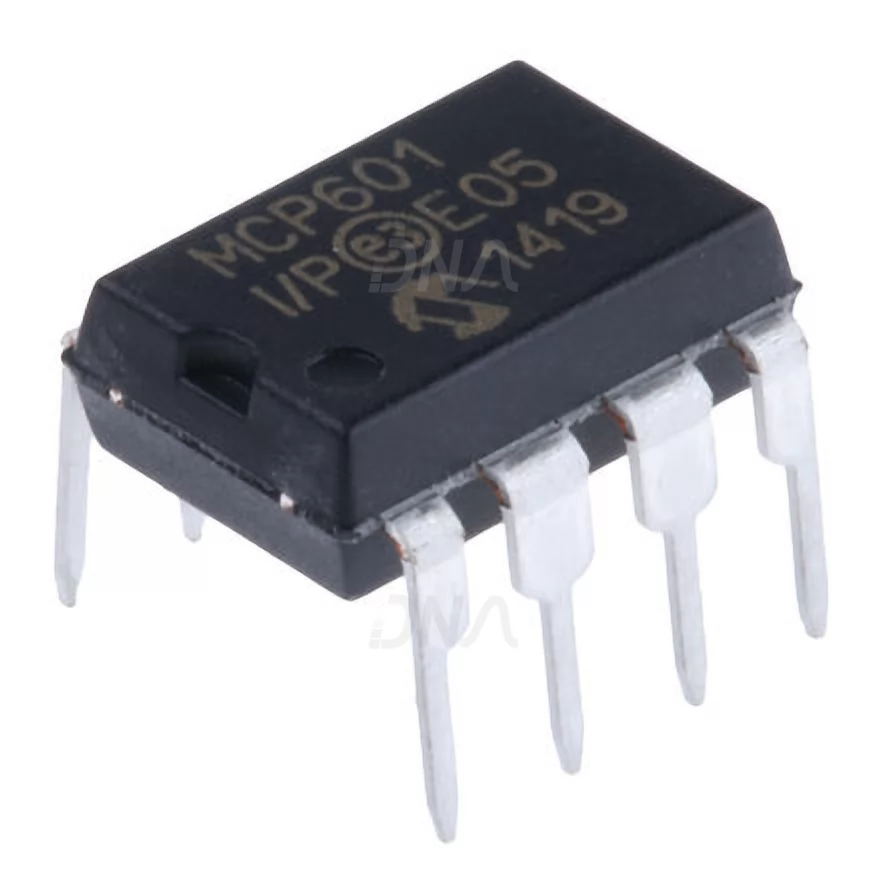

MCP601 Single Supply CMOS Op-Amp

MCP601 operational amplifier (op amp) has a gain bandwidth product of 2.8 MHz with low typical operating current of 230 uA and an offset voltage that is less than 2 mV. The MCP601 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain, and rail-to-rail output swing. The MCP601 operates with a single supply voltage that can be as low as 2.7V, while drawing less than 325 of quiescent current. MCP601 Opamp is available in standard 8-lead PDIP, SOIC, TSSOP and 5-lead SOT-23A packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications.

Features of MCP601 Single Supply CMOS Op-Amp

• Low Input Bias Current:1 pA (typ.)

• Gain-Bandwidth Product: 2.8 MHz

• Low Quiescent Current: 230 µA/amplifier (typical)

• Low Input Offset Voltage: 2 mV (max.)

• Unity Gain Stable

• Rail to Rail Output

• Extended Temperature Range

• Temp. Range:-40°C to +125°C

• Vos Max:2000(µV)

• Iq Typical:230(µA)

• Iq Max:325(µA)

• GBWP:2800(kHz)

• Operating Voltage Range:2.7 to 6.0(V)

• Input Voltage Noise Density:29(nV/rt(Hz))

• PSRR Min:80(dB)

• CMRR Min:75(dB)

• Vos/Ta:2.5(uV/°C)

• Ib:1(pA)

• Aol:110(dB)

• PM:50(deg)

• Isc:22(mA)

• Slew Rate:2.3(V/uS)




Download MCP601 Dual Op-Amp Datasheet
