Product Images are shown for illustrative purposes only and may differ from actual product.

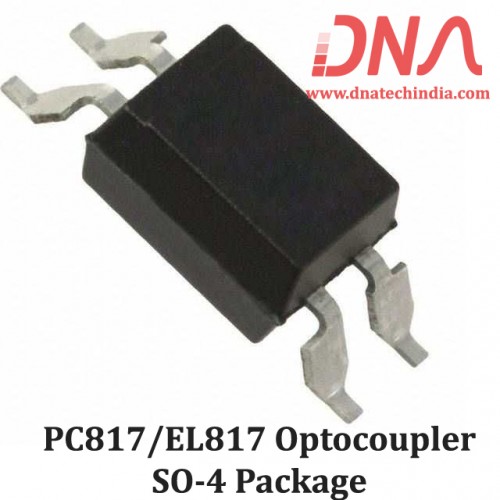

PC817/EL817 SMD Optocoupler IC (SOP-4 Package)
- Stock: Out Of Stock NotInStock
- SKU: 2761 | DAC225
-
Rs.
5.12 (inc GST)
Rs.4.34 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
PC817 - EL817 Optocoupler in SOP-4 Package
PC817 (EL817) Transistor Output PhotoCoupler in SOP-4 SMD package
The PC817/EL817 is a SMD Transistor Output Optocoupler is a 1-channel 4-pin Transistor Output Photocoupler contains an IRED optically coupled to a phototransistor. It is suitable for programmable controllers and facsimiles.
DNA Solutions has various types of Photocouplers, Optocouplers and optoisolator IC's. Check our complete collection of Photocouplers, Optocouplers and optoisolator IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of PC817/EL817 Optocoupler
- 10 to 20mA Collector current.
- 50mA Forward current.
- 6V Reverse voltage.
- 200mW Total power dissipation.
- Applications: Communications & Networking, Industrial.
Specification of PC817/EL817 Photocoupler
- Mounting Type : Through Hole
- No. of Output : 1
- Rise Time : 4μs
- Fall Time : 3μs
- Operating Temperature Range (°C) : -30 to 100
- Dimensions in mm (LxWxH) : 7.13 x 4.85 x 3.41
- If - Forward Current : 20 mA
- Maximum Collector Emitter Voltage : 80 V
- Maximum Collector Current : 50 mA
- Isolation Voltage : 5000 Vrms
- Maximum Collector Emitter Saturation Voltage : 0.2 V
- Vf - Forward Voltage : 1.2 V
- Vr - Reverse Voltage : 6 V
- Pd - Power Dissipation : 200 mW
