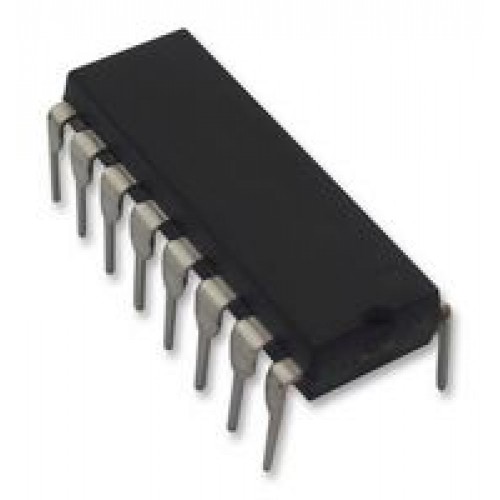

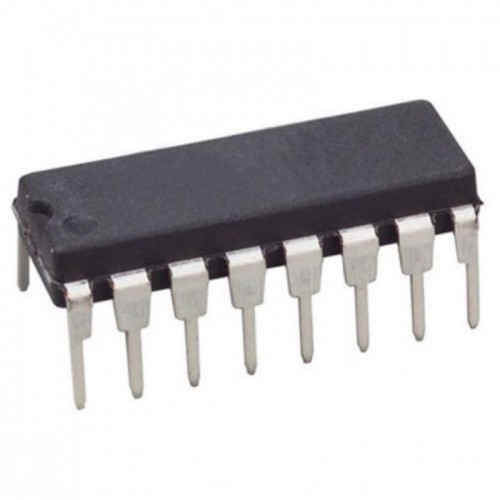

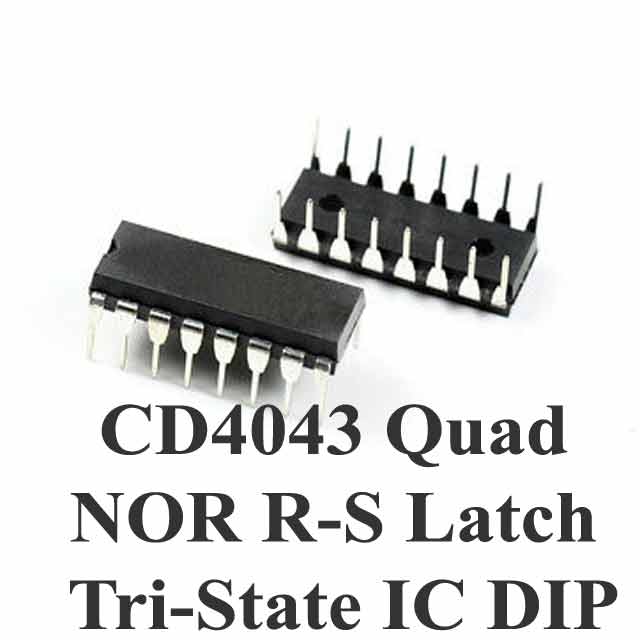

CD4043 Quad NOR R-S Latch Tri State DIP IC

CD4043 Quad NOR R-S Latch Tri-State IC

CD4043BMS Quad NOR R/S Latch with Tri-State Outputs, 20V Rating, and Separate SET/RESET Inputs.

The CD4043 Quad NOR R-S Latch Tri-State IC is a versatile component ideal for digital logic applications. It features quad cross-coupled 3-state CMOS NOR latches, offering reliable performance with a high voltage rating of 20V. Each latch includes a common ENABLE input, allowing for efficient output management and an open circuit feature for common busing. This ensures that the outputs are only connected when needed, enhancing system efficiency.

Designed for both positive and negative logic systems, the CD4043 Quad NOR R-S Latch Tri-State IC supports independent storage with four bits and allows for seamless integration in multi-register systems. With separate SET and RESET inputs for each latch, this IC provides flexibility in handling various logic configurations. It's an excellent choice for applications requiring precise control and high reliability.

Incorporating the CD4043 Quad NOR R-S Latch Tri-State IC into your designs can streamline your digital circuits. Whether you're working on strobed registers or general digital logic, this IC meets the needs of modern electronics. Discover its potential in applications such as holding registers and independent storage, ensuring that your projects achieve optimal performance.

Explore the reliable range of 4000 Series IC's at DNA. The CD4043 is perfect for your digital logic needs. Check other "4000 Series IC's" that we have in stock.

If you are searching for specific electronic components, reach out to us at DNA. We can help you find parts like DC to DC Converter Modules, Development Boards, HMI Displays, Super Capacitors, Diodes, and IGBTs. If you can't find what you need, we can import it for you. Contact Us.

Features of CD4043 Quad NOR R-S Latch Tri-State IC

• High Voltage Types (20V Rating)
• Quad NOR R/S Latch - CD4043BMS
• 3 State Outputs with Common Output ENABLE
• Separate SET and RESET Inputs for Each Latch
• 100% Tested for Quiescent Current at 20V

Specification of CD4043 Quad NOR R-S Latch Tri-State IC

• Maximum Input Current of 1 microampere at 18V
• Noise Margin (Over Full Package Temperature Range)
• Standardized Symmetrical Output Characteristics

Applications of CD4043 Quad NOR R-S Latch Tri-State IC

• Holding Register in Multi-Register System
• Four Bits of Independent Storage
• Strobed Register
• General Digital Logic

Related Links for CD4043 Quad NOR R-S Latch Tri-State IC

• Other Products from 4000 Series IC's Category

Package Includes

• 1 X CD4043 Quad NOR R-S Latch Tri-State IC DIP
