  • GoodSky RWH-SH-124D 24 Volt Relay

Product Images are shown for illustrative purposes only and may differ from actual product.

GoodSky RWH-SH-124D 24 Volt Relay

  • Stock: 10
  • Brand: GoodSky
  • SKU: 2748 | DAE264
  • Rs. 68.20 (inc GST)
    Rs.57.80 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

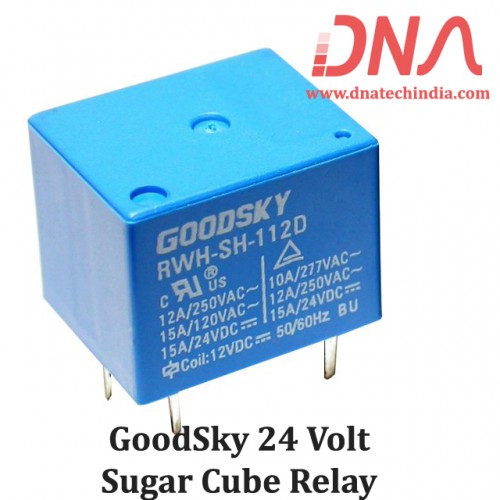

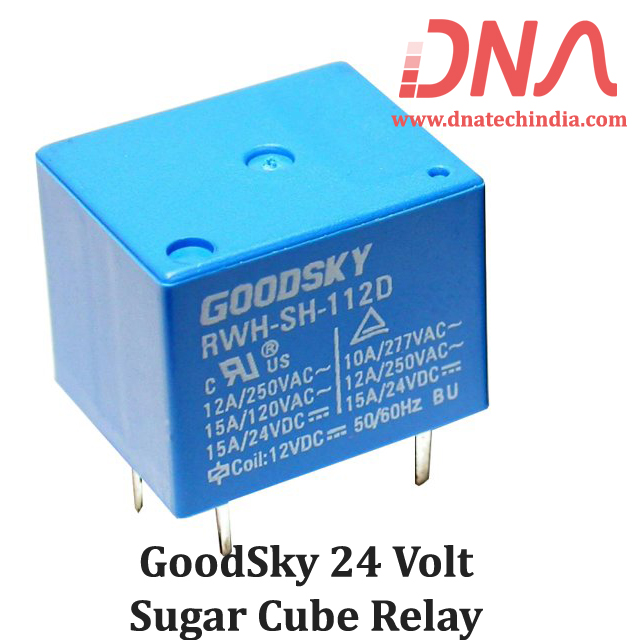

RWH-SH-124D Goodsky 24 Volt Cube Relay

Goodsky 24 Volt 7 Ampere Sugarcube Relay RWH-SH-124D

This is a high quality Goodsky Make 24 Volt sugarcube relay. RWH-SH-124D PCB mount sugarcube relay can be used for switching High voltage 230 Volt devices and has current rating upto 12 ampere.

Small compact size and light weight cube relay.This relay is plastic sealed under high temperature condition and various chemical solutions. Goodsky RWH-SH-124D Relay is approved C-UL & TÜV safety standard.

DNA Solutions has various types of Relay, Relay Socket and SSR. Check out our complete collection of Relay, Relay Socket and SSR.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

 Feature For RWH-SH-124D 24 volt Cube Relay

  • RW Series Relay covers switching capacity by 10A is spite of miniature size to comply with user’s wide selection.
  • RWH is approved C-UL & TÜV safety standard.
  • The employment of suitable plastic materials is applied under high temperature condition and various chemical solutions.
  • Complete protective construction is designed form dust and soldering flux. If required, plastic sealed type is available for washing procedure.
  • 12A at 120VAC for RW & 12A at 240VAC for RWH are UL approved.

Application For RWH-SH-124D 24 Volt Sugarcube Relay

  • Domestic Appliances
  • Office Machines
  • Audio Equipment
  • Coffeepot
  • Control Units

Performance (at Initial Value)

  • Contact Resistance : 100mΩ Max.@1A,6VDC
  • Operate Time:10 mSec. Max.
  • Release Time : 5 mSec. Max.
  • Dielectric Strength : Between Coil & Contact (1,000VAC at 50/60 Hz for one minute.)/(Between Contacts : 500VAC at 50/60 Hz for one minute)
  • Surge Strength : 3,000V (between Coil  & Contact 1.2x50µSec.)
  • Insulation Resistance : 100 MegaΩ Min. at 500VDC.
  • Max. On/Off Switching : Electrical(30 ops per Minute)/Mechanical (300 ops per Minute)
  • Temperature Range : -30~55°C
  • Humidity Range : 45~85% RH.
  • Coil Temperature Rise : 35°C Max.
  • Vibration : Endurance (10 to 55 Hz dual)/ amplitude width 1.5mm.
  • Error Operation : 10 to 55 Hz dual/amplitude width 1.5mm.
  • Shock : Endurance (1,000 m/S2 min)/Error Operation(100 m/S2 min)
  • Life Expectancy : Mechanical(107 Operations at No Load condition)/Electrical(105 Operations at RatedResistive Load)
  • Weight : About 11 g.

Safety Standard & File Number

  • RW : UL- E141060
                   CSA-LR76598
  • RWH : C.UL- E141060

                      TÜV-R9854380
