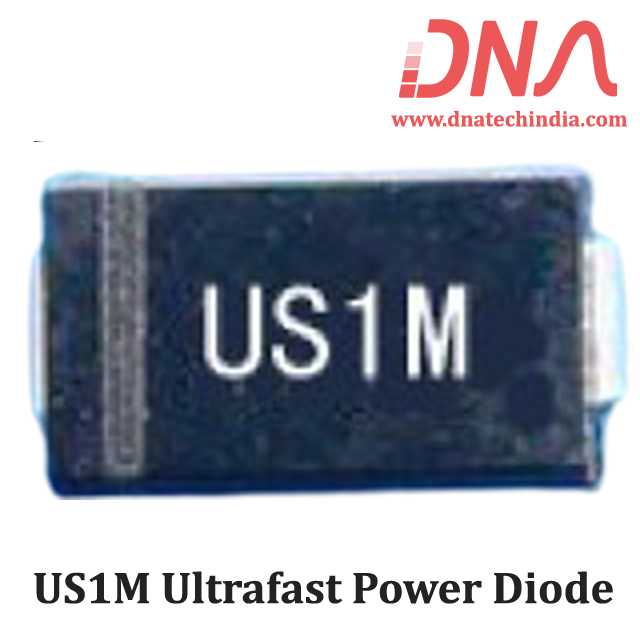

  • US1M Ultrafast Power Diode

Product Images are shown for illustrative purposes only and may differ from actual product.

US1M Ultrafast Power Diode

  • Product Code: 0881
  • Availability: 20
  • Price :

    Rs.9.44 (inc GST)

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

This product has a minimum quantity of 5

US1M Fast/Ultrafast Power Diode

The US1M is a surface mount ultra fast diode in SMB (DO-214AC) package. The device features glass passivated chip junction, low forward voltage and low power loss, ultrafast recovery time for high efficiency and low profile package.

Features of US1M

  • Ideal for automated placement

  • Maximum repetitive reverse voltage Vrrm of 1KV

  • Non repetitive peak forward surge current IFSM of 30A

  • Maximum forward Voltage VF of 1.7V at IF 1A

  • Maximum forward current IF(AV) of 1A

  • Operating temperature range -65°C to 150°C

  • Reverse recovery time trr of 75ns

  • Glass passivated junction chip.

  • For surface mounted application.

  • Low profile package.

  • Built-in strain relief.

  • Ideal for automated placement.

  • Easy pick and place.

  • Superfast recovery time for high efficiency.

  • Glass passivated chip junction.

  • High temperature soldering: 260°C/10 seconds at terminals.

  • Plastic material.

Application of US1M

  • Power Management,

  • Industrial,

  • Portable Devices,

  • Consumer Electronics,

  • Automotive.
