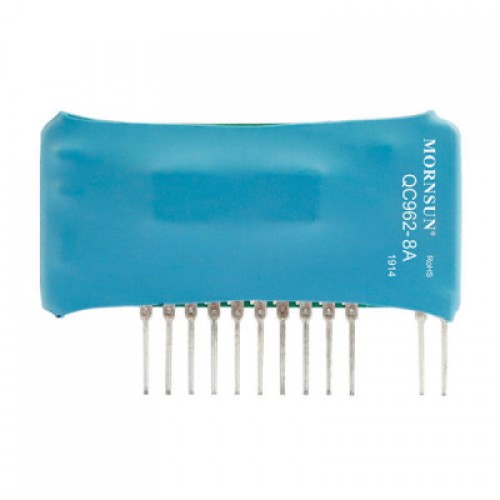

Mornsun Hybrid Integrated IGBT Driver Module QC962-8A

QC962-8A IGBT Driver for N-channel IGBT modules with built-in short circuit protection and high CMRR opto-coupler.

The Mornsun Hybrid Integrated IGBT Driver Module QC962-8A is designed to drive N-channel IGBT modules effectively. It features an opto-coupler for electrical isolation, ensuring safe operation in various applications. This module includes a built-in short circuit protection circuit, providing reliability during operation. The QC962-8A supports a switching frequency of up to 20kHz, making it suitable for high-performance needs.

Ideal for general-purpose inverters and uninterruptible power supplies (UPS), the Mornsun Hybrid Integrated IGBT Driver Module QC962-8A is also compatible with AC servo systems and welding machines. Its TTL compatible input interface simplifies integration into existing systems. Users can rely on the controlled time detected short circuit feature for enhanced safety.

For those looking to optimize their electronic systems, the QC962-8A driver module offers robust performance and essential protection features. Explore the full potential of your applications with this reliable IGBT driver.

Explore the reliability of Mornsun SMPS at DNA. We offer a wide range of Mornsun products tailored to your electronic needs. Check other Mornsun SMPS that we have in stock.

At DNA, we cater to Indian electronics buyers. If you need specific parts or want to import components like Sensor Modules, Analog ICs, IGBTs, Connectors, Hongfa Relays, or Crystals, reach out to us. We support both retail and bulk orders. Contact Us

Features of Mornsun Hybrid Integrated IGBT Driver Module QC962-8A

• TTL compatible input interface
• Built-in high CMRR opto-coupler
• Switching frequency up to 20kHz
• Controlled time detected short circuit
• Built-in short circuit protection circuit

Specification of Mornsun Hybrid Integrated IGBT Driver Module QC962-8A

• Electrical isolation voltage: 3750VRMS/min
• CMR: Typical: 30kV/μs, Min.:15kV/μs

Applications of Mornsun Hybrid Integrated IGBT Driver Module QC962-8A

• General-purpose inverters
• Uninterruptable Power Supplies (UPS)
• AC Servo Systems
• Welding Machines

Related Links for Mornsun Hybrid Integrated IGBT Driver Module QC962-8A

• Other Products from Mornsun SMPS Category

Package Includes

• 1 X Mornsun Hybrid Integrated IGBT Driver Module QC962-8A
