Product Images are shown for illustrative purposes only and may differ from actual product.
Cytron FD04A 4-Channel Motor Driver
-
Rs. 2,362.02 (inc GST)
Rs.2,001.71 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

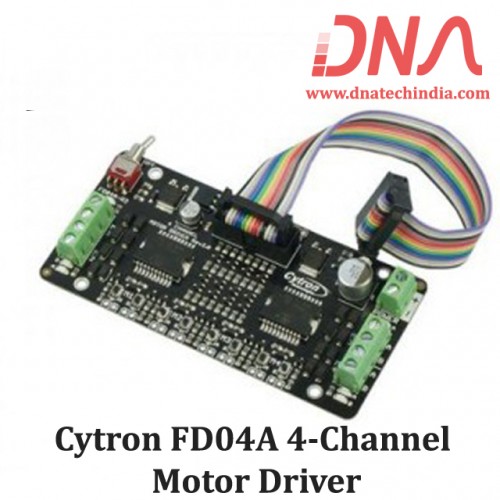

Cytron FD04A 4-Channel Motor Driver
1.5Amp 7V-25V DC Motor Driver (4 Channels)
This 4 channels DC motor driver is designed for makers who want to build an omni directional-drive robot. It enables bidirectional control of four (4) DC brushed motor from 7V to 25V.
The onboard test buttons and motor output LEDs allow functional test of the motor driver in a quick and convenient way without hooking up the host controller.
This motor driver can be controlled with PWM and DIR inputs. With input logic voltage range from 1.8V to 12V, it’s compatible with wide variety of host controller (e.g. Arduino, Raspberry Pi, PLC).
We have Various sizes of Cytron. Check out our complete collection of Cytron.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features:
- Bidirectional control for four (4) brushed DC motors.
- Operating Voltage : DC 7V to 25V
- Maximum Motor Current : 1.5A continuous, 2.5A peak
- Buttons for quick testing.
- LEDs for motor output state.
- PWM and DIR inputs.
- Inputs compatible with 3.3V and 5V logic (Arduino, Raspberry Pi, PLC, etc).
- Reverse polarity protection.
- Board size : 10.67cm x 5.21cm
Application:
- Omnidirectional drive mobile
- automation machine
Additional Information
- Motor Channel : 4
- Operating Voltage (VDC) : 7 to 25
- Peak Current (A) : 2.5
- Continuous Current (A) : 1.5
- Arduino Shield : No- can be used with Wire connection
- PWM (Lock-Antiphase and Sign-Magnitude) : Yes
- UART : No
- Analog : No
- RC Servo Signal : No
- Polarity Protection : Yes
- LEDs Indicator :Yes
- Test/Manual Button : Yes
- Cooling Fan : No
- Power Switch : On board power switch
- 1 x 1.5Amp 7V-25V DC Motor Driver (4 Channels)
- 1 x 14 ways IDE cable
