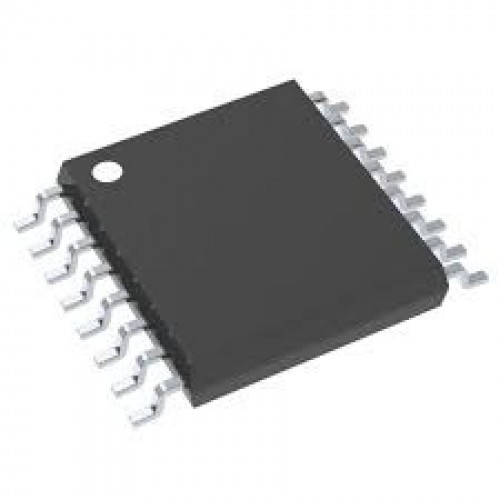

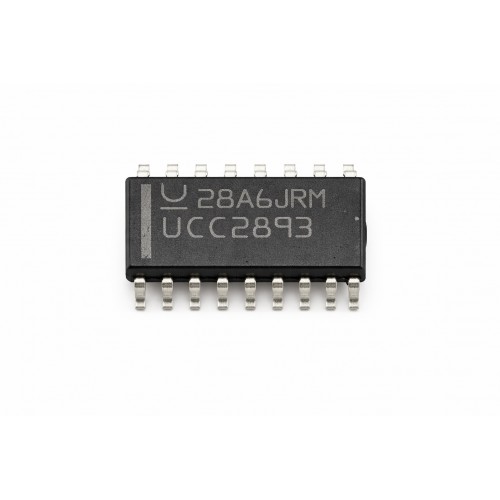

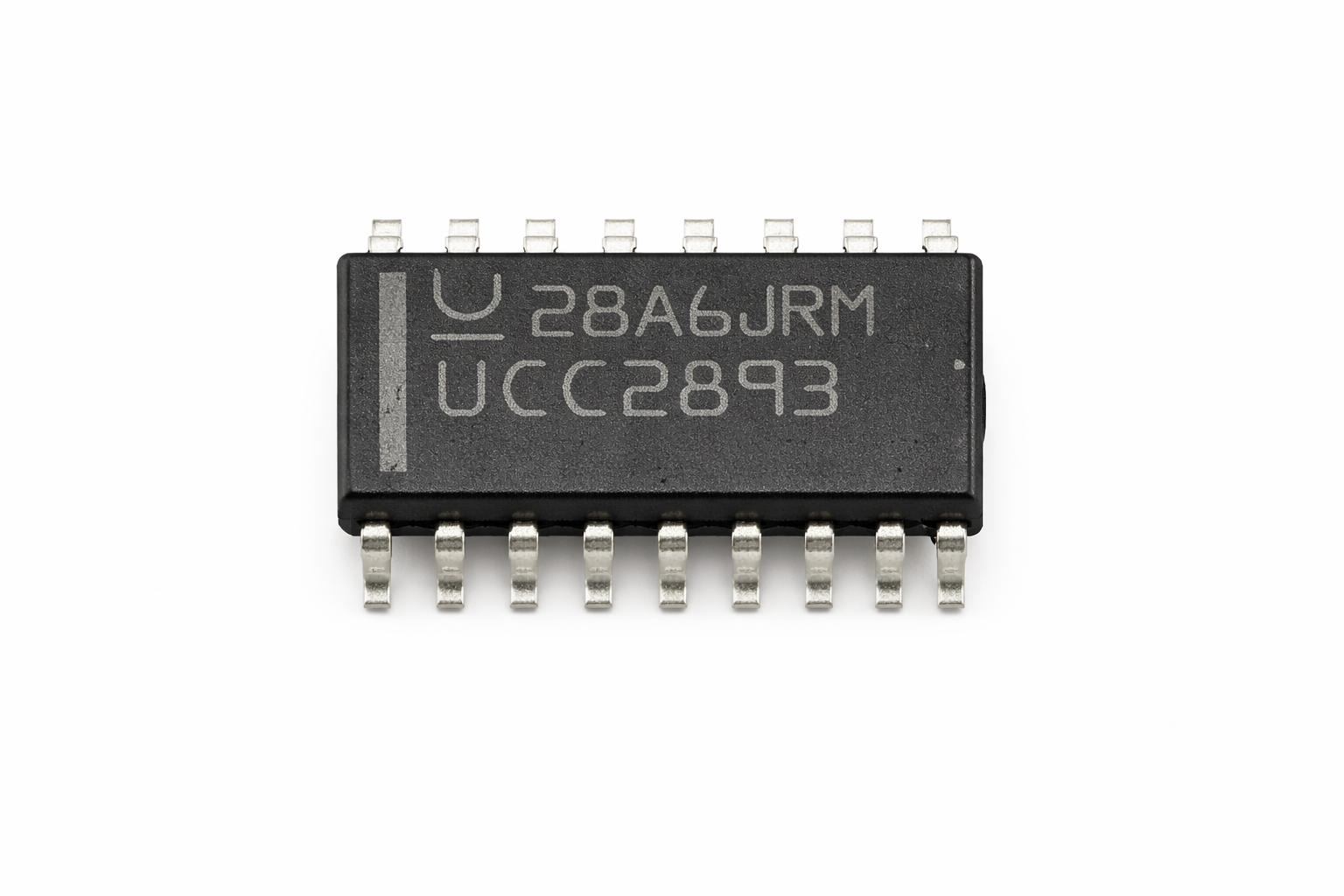

UCC2893 PWM controller SMD IC

UCC2893 SMD PWM Controller for Power Converters

UCC2893 SMD PWM Controller IC for active clamp/reset topologies with 110-V startup and peak current mode control.

The UCC2893 SMD PWM Controller is engineered for efficient power management in various applications. It simplifies the implementation of active clamp and reset switching power topologies. This controller features a 110-V start-up regulator, making it ideal for high-efficiency, low EMI/RFI off-line or DC/DC converters. With its peak current-mode control and cycle-by-cycle current limiting, the UCC2893 SMD PWM Controller ensures reliable performance in demanding environments.

Designed for versatility, this controller supports applications like server power supplies, 48-V telecom systems, and high-power adapters. The UCC2893 SMD PWM Controller includes a complementary auxiliary driver with programmable deadtime, enhancing operational efficiency. Its accurate line undervoltage and overvoltage thresholds further ensure stable performance across various load conditions.

Explore the reliability and efficiency of the UCC2893 SMD PWM Controller for your electronic projects. This PWM controller is suitable for applications ranging from LCD TVs to high-power adapters, providing the necessary control for efficient power conversion.

Discover the reliability of Power Devices at DNA. The UCC2893 SMD PWM Controller fits perfectly within our Power Devices category. Explore our range of products to enhance your electronic projects. Check other Power Devices that we have in stock.

If you're looking for specific electronic components, reach out to us. We can help you find parts like Sensors, Microcontrollers, Power Supplies, Development Boards, Programmers, and DC to DC Converter Modules. If you can't find what you need, we can also import it for you. Contact Us

Features of UCC2893 SMD PWM Controller for Power Converters

• Low Output Jitter
• Soft−Stop Shutdown of MAIN and AUX
• Ideal for Active Clamp/Reset Forward
• Complementary Auxiliary Driver
• Peak Current-Mode Control
• 110-V Input Startup Regulator
• True Drive 2-A Sink and Source Outputs
• Programmable Slope Compensation

Specification of UCC2893 SMD PWM Controller for Power Converters

• Cycle-by-Cycle Current Limiting
• Accurate Line UV and OV Thresholds
• Programmable Deadtime
• 110-V Startup Regulator
• 2-A Sink and Source Outputs

Applications of UCC2893 SMD PWM Controller for Power Converters

• 150-W to 700-W SMPS
• High-Efficiency DC/DC Converters
• Server Power Supplies
• 48-V Telecom Applications
• High Power Adapters

Package Includes

• 1 X UCC2893 SMD PWM Controller
