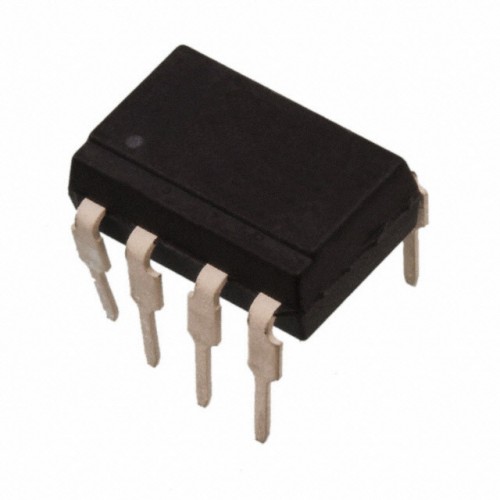

• PS2502-2 8PIN Dual-Channel Optocoupler IC

Product Images are shown for illustrative purposes only and may differ from actual product.

PS2502-2 8PIN Dual-Channel Optocoupler IC

  • Stock: Out Of Stock
  • SKU: 7422 | DAH345
  • Rs. 156.94 (inc GST)
    Rs.133.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

PS2502-2 8PIN Dual-Channel Optocoupler IC

PS2502-2 8PIN Dual-Channel Optocoupler IC

The PS2502-2 series of optically coupled isolators consist of infrared light emitting  diodes  and  NPN  silicon  photo darling ton sin space efficient dual in line plastic packages. The PS2502-2 is an optocoupler (also known as an Optoisolator) with a dual channel configuration. It consists of two light-emitting diodes (LEDs) and two NPN silicon phototransistors in a compact package. The PS2502-2 is used to provide electrical isolation between input and output, ensuring that high-voltage or noisy circuits do not interfere with sensitive components in low-voltage circuits.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of PS2502-2 8PIN Dual-Channel Optocoupler IC

  • Dual Channel: Two independent optocoupler channels in one package.
  • High Isolation Voltage: Rated for up to 5000 Vrms isolation between input and output.
  • Low Input Current: Requires only a small input current to activate the phototransistor.
  • High Collector-Emitter Voltage: Can handle up to 80V.
  • Compact 8-Pin Package: Saves space in circuit designs, available in both DIP-8 and surface-mount formats.
  • Low Coupling Capacitance: Minimizes interference and maintains signal integrity between the isolated sides.

Applications of PS2502-2 8PIN Dual-Channel Optocoupler IC

  • Signal Isolation: Protects low-voltage circuits from high-voltage circuits by isolating signals.
  • Switching Power Supplies: Often used to feedback control signals while maintaining isolation.
  • Microcontroller Interface: Provides isolation between a microcontroller and high-power devices.
  • Data Transmission: For isolated data transmission in communication equipment.

    Package Includes

    • 1 x PS2502-2 8PIN Dual-Channel Optocoupler IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
