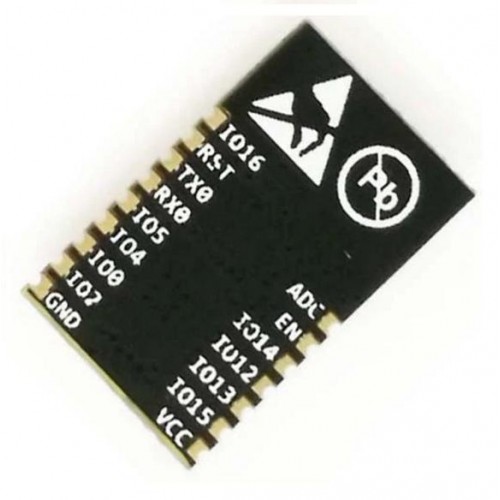

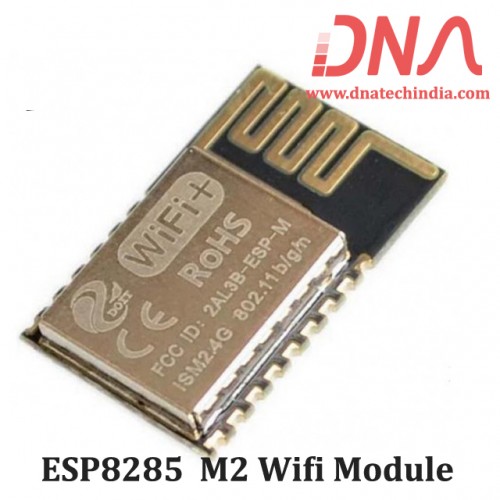

ESP8285 M2 WiFi IoT Module

  • Stock: 2
  • SKU: 2023 | DAB068
  • Rs. 223.02 (inc GST)
    Rs.189.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

ESP-M2 ESP8285 Wifi Module

ESP8285 M2 IoT Module with wifi interface

Basically an ESP8285 module is an ESP8266 Module with additional 1 MB of Flash memory and the ESP8285 can even bear high temperature upto 125℃ (the one for ESP8266 is just 85℃). More important, the code programmed in ESP8266 can also be used for ESP8285.

The chip ESP825 is encapsulated an advanced Tensilica’s L106 32-bit CPU, together with SRAM. ESP825 has the full and complete WiFi function, which can be used independently and also used as a slave with other Hoster MCU, which can start directly from the out-built Flash. In addition, the built-in high-speed buffer is a benefit for the system performance. Especially, ESP8285 can be used as a WiFi adapter by SPI/SDIO and/or I2C/UART interface, when it is applied to the other MCU design.

Features Of ESP8285 M2 Serial WiFi Module

  • Ultra-small size
  • Support serial to WiFi
  • Wireless transparent transmission
  • Long distance transmission with ultra-low power
  • Support outboard antenna
  • Bearing high temperature to 125 °C, compared to the 85°C for ESP8266

Specifications Of ESP8285 M2 WiFi IoT Module

SOC characteristics:

  • Built-in Tensilica L106 ultra-low power 32-bit CPU, main frequency supports 80MHz and160MHz and RTOS
  • Built-in TCP/IP protocol
  • Built-in one-channel 10-bit high precision ADC
  • Outboard interface: HSPI, UART, I2C, I2S, IR Remote Control, PWM, GPIO
  • Deep sleep current is 10uA, the cut-off current is smaller than 5uA
  • Wake, connect and transmission data package within 2ms
  • The consumer power is smaller 1.0Mw (DTIM3) when at standby status
  • Built-in 1M byte for SPI Flash

 WiFi characteristics

  • Support 802.11 b/g/n/e/I
  • Support Station, Soft AP, Soft AP+STA mode
  • Support WiFi Direct (P2P)
  • Support CCMP (CBC-MAC, computation mode), TKIP (MIC, RC4), WAPI (SMS4), WEP (RC4), CRC etc., for hardware acceleration
  • P2P finding, P2P GO mode/ GC mode and P2P power manage
  • WPA/PA2PSK and WPS
  • 802.11securitycertification: pre-certification and TSN
  • Support 802.11n (2.4GHz)
  • 802.1h/RFC1042 frame encapsulation
  • Support seamless roaming
  • Support AT remote update and cloud update (OTA)
  • Support Smart Config function (including Android and Ios device)

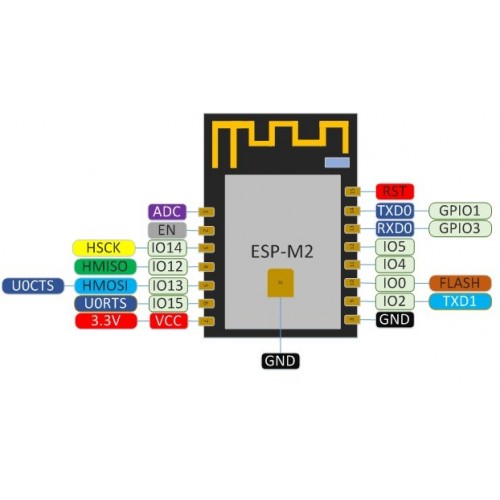

 Module interface:

  •  2* UART
  • 1*ADC
  • 1*En
  • 1*wakeup pin
  • 1*HSPI
  • 1*I2C
  • 1*I2S
  • More than 10*GPIOs
  • Working temperature: -40°C-+125°C

Applications of Mini ESP-M2 ESP8285 Serial Wireless WiFi Transmission Module

  • Electrical appliance
  • Smart power plug, smart light
  • Infant monitor
  • Sensor networks
  • Security ID label
  • Wireless location beacon
  • Home automation
  • Mesh networks
  • IP video camera
  • Wearable electronics
  • Wireless location recognition
  • Industrial wireless control
