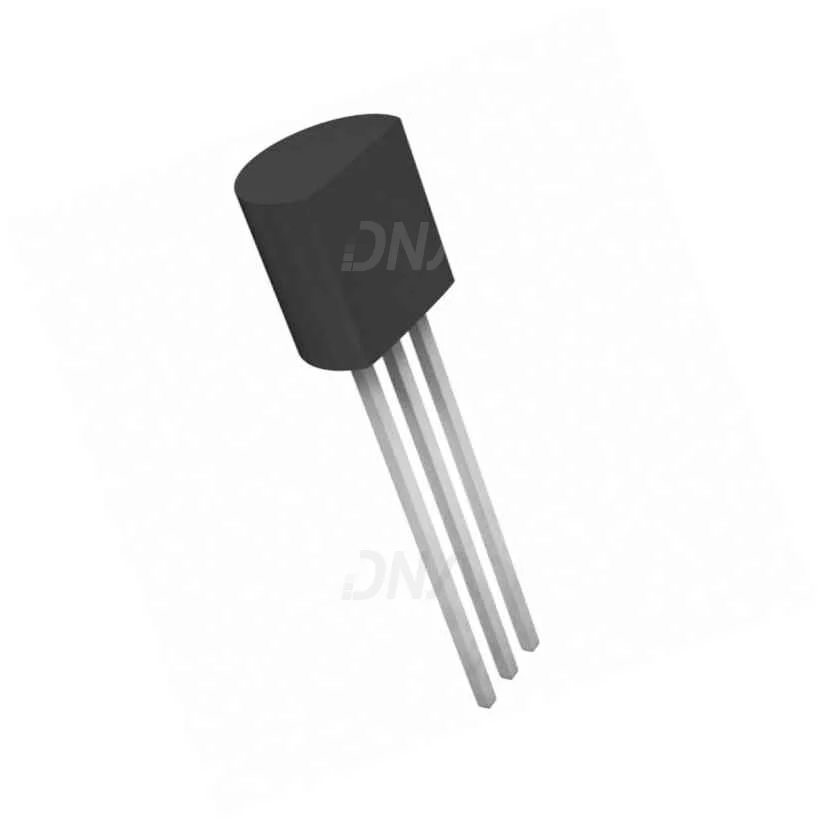

2N2222 Amplifier Transistor(TO-92)

Write a review | 0 reviews

Stock: 120

SKU: 821 | DAA284

Rs. 2.36 (inc GST)
Rs.2.00 + GST

Qty :
Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

2N2222 Amplifier Transistor

2N2222 is NPN BJT normally used in low power amplifiers and also for switching application.

2n2222 is used as a small signal transistor and used as a general purpose transistor and is very popular. This is in TO-92 package form.

Features of 2N2222 Transistor

NPN Silicon Planar Switching Transistors.
Switching and Linear application DC and VHF Amplifier applications.
Rating Symbol Value Unit
Collector–Emitter Voltage V_CEO: 40 Vdc
Collector–Base Voltage V_CBO: 75 Vdc
Emitter–Base Voltage V_EBO: 6.0 Vdc
Collector Current — Continuous I_C: 600 mAdc
Total Device Dissipation(P_D) @ T_A = 25°C : 625 mW
P_D Derate above 25°C : 5.0 mW/°C
Total Device Dissipation(P_D)@ T_C = 25°C : 1.5 Watts
P_D Derate above 25°C : 12 mW/°C
Operating and Storage Junction Temperature Range (T_J, T_stg) : –55 to +150 °C
Thermal Resistance, Junction to Ambient R_JA: 200 °C/W
Thermal Resistance, Junction to Case R_JC: 83.3 °C/W

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
