Product Images are shown for illustrative purposes only and may differ from actual product.

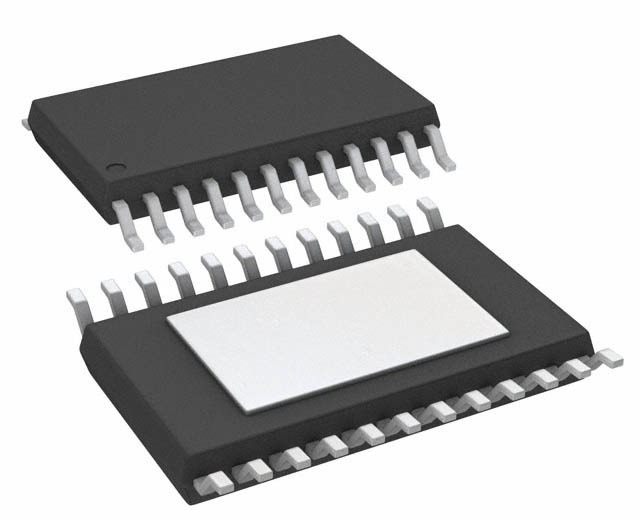

A3983SLPT DMOS MICROSTEPPER MOTOR DRIVER IC
- Stock: 15
- SKU: 7496 | DAH282
-
Rs. 504.45 (inc GST)
Rs.427.50 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
A3983SLPT DMOS MICROSTEPPER MOTOR DRIVER IC
A3983SLPT DMOS MICROSTEPPER MOTOR DRIVER IC
The A3983SLPT is a complete micro stepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, and eighth-step modes, with an output drive capacity of up to 35 V and ±2 A. The A3983 includes a fixed off-time current regulator which has the ability to operate in Slow or Mixed decay modes. The translator is the key to the easy implementation of the A3983. Simply inputting one pulse on the STEP input drives the motor one micro step. There are no phase sequence tables, high frequency control lines, or complex interfaces to program. The A3983 interface is an ideal fit for applications where a complex microprocessor is unavailable or is overburdened.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of A3983SLPT DMOS MICROSTEPPER MOTOR DRIVER IC
- Motor Type Supported: Bipolar Stepper Motor
- Micro stepping Modes: Full, half, quarter, and eighth-step modes for precise motor control.
- Maximum Output Current:2 A per phase (with external sense resistors and suitable cooling).
- Supply Voltage (VBB): 8 V to 35 V (motor supply voltage range).
- Logic Supply Voltage (VDD): 3.3 V to 5 V (for the logic inputs).
Specifications of A3983SLPT DMOS MICROSTEPPER MOTOR DRIVER IC
- Motor Type Supported: Bipolar Stepper Motor
- Micro stepping Modes: Full, half, quarter, and eighth-step modes for precise motor control.
- Maximum Output Current:2 A per phase (with external sense resistors and suitable cooling).
- Supply Voltage (VBB): 8 V to 35 V (motor supply voltage range).
- Logic Supply Voltage (VDD): 3.3 V to 5 V (for the logic inputs).
Package Includes
- 1 x A3983SLPT DMOS MICROSTEPPER MOTOR DRIVER IC
