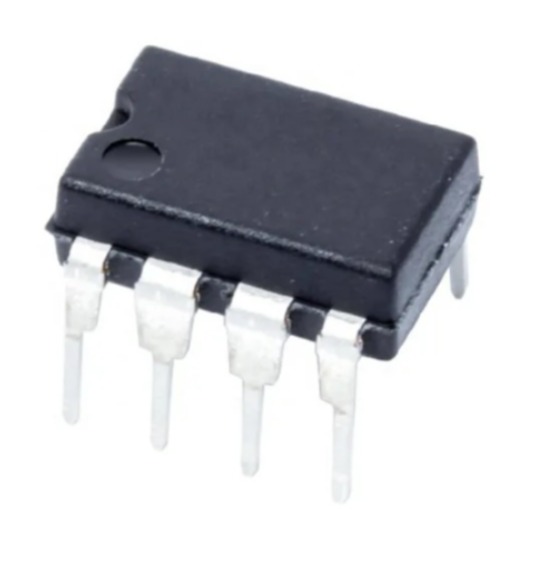

CSC7203 HIGH PERFORMANCE OFF-LINE PWM SWITCHING POWER CONVERTER IC

CSC7203 High Performance Off-Line PWM Switching Power Converter IC

CSC7203 PWM converter IC for off-line power supply with 700V BJT and built-in protection features.

The CSC7203 High Performance Off-Line PWM Switching Power Converter IC is ideal for various applications like set-top boxes, DVDs, and printers. This converter uses a current mode PWM control scheme to regulate output voltage and current efficiently. It operates within a full input voltage range of 85VAC to 265VAC, making it versatile for different power supply designs.

This IC features a built-in high-voltage startup circuit, eliminating the need for external components, which enhances overall efficiency. Safety is a priority, with built-in protections against over-temperature, over-voltage, and over-current, ensuring reliable operation in all conditions.

The CSC7203 is suitable for intelligent mobile phone chargers and power adapters, making it a valuable addition to your electronic component inventory. Explore how the CSC7203 High Performance Off-Line PWM Switching Power Converter IC can meet your needs for efficient power conversion.

At DNA, we offer a wide range of high-quality AC DC converter Offline Switchers from trusted manufacturers. Explore the AC DC converter Offline Switcher category and find the right solutions for your power needs. Check other AC DC converter Offline Switcher that we have in stock.

If you are searching for specific electronic components, reach out to us. We can help you find hard-to-get parts and can import them if needed. We support retail and bulk orders. Check out related items like Programmer, Inductor, HMI Display, Connectors, SMPS, and Nextion Display. Contact Us.

Features of CSC7203 High Performance Off-Line PWM Switching Power Converter IC

• Built-in 700V High Power BJT
• Full Input Voltage Range: 85VAC ~265VAC
• Current Mode PWM Control
• Pulse-by-Pulse Current Limit Detection
• Built-in Over Temperature Protection
• Over Current and Over Voltage Protection
• Self-Powered Without Auxiliary Winding

Specification of CSC7203 High Performance Off-Line PWM Switching Power Converter IC

• Input Voltage: 85VAC-265VAC
• Operating Frequency: Adjustable
• Output Power: Up to 20W
• Startup Circuit: Integrated
• Protection Features: Over-Temperature, Over-Current, Over-Voltage

Applications of CSC7203 High Performance Off-Line PWM Switching Power Converter IC

• Smartphone power supplies
• Tablet power supplies
• DVD power supplies
• Set-top box power supplies
• Power adapters

Related Links for CSC7203 High Performance Off-Line PWM Switching Power Converter IC

• Other Products from AC DC converter Offline Switcher Category

Package Includes

• 1 X CSC7203 HIGH PERFORMANCE OFF-LINE PWM SWITCHING POWER CONVERTER IC
