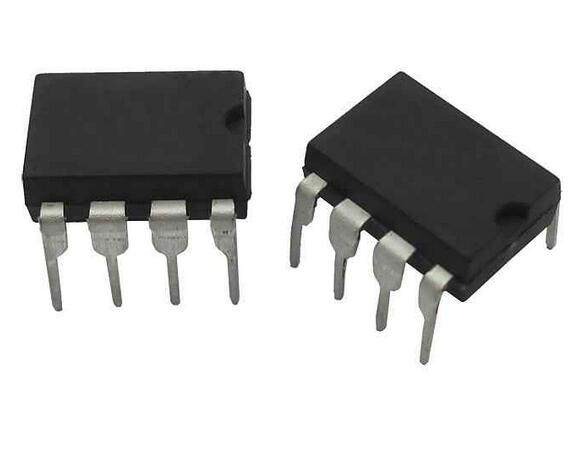

• SD6835 PWM CONTROLLER WITH BUILT-IN HIGH VOLTAGE DIP IC

Product Images are shown for illustrative purposes only and may differ from actual product.

SD6835 PWM CONTROLLER WITH BUILT-IN HIGH VOLTAGE DIP IC

  • Stock: 15
  • SKU: 7390 | DAH157

Availability: InStock priceValidUntil: 2025-10-13

  • Rs. 46.61 (inc GST)
    Rs.39.50 + GST

    Qty :

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

SD6835 PWM CONTROLLER WITH BUILT-IN HIGH VOLTAGE DIP IC

SD6835 PWM CONTROLLER WITH BUILT-IN HIGH VOLTAGE DIP IC

The SD6835 is current mode PWM controller used for SMPS with built-in high-voltage MOSFET and external sense resistor. It features low standby power and low start current. In standby mode, the circuit enters burst mode to reduce the standby power dissipation. The SD6835 is a current-mode PWM controller designed to drive power MOSFETs in low-power applications. It integrates a variety of features like frequency jittering, overvoltage protection, and low standby power consumption, making it ideal for use in compact and high-efficiency SMPS designs. Built-in peak current compensation circuit makes the limit peak current stable even with different input AC voltage.

DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.

If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of SD6835 PWM CONTROLLER WITH BUILT-IN HIGH VOLTAGE DIP IC

  • Lower start-up current (4µA)
  • Various switching frequency following load for the high efficiency
  • EMI Frequency jitter for low EMI
  • Overvoltage, overload and over temperature protections
  • External peak current sense resistor
  • Limit output power compensation

Specifications of SD6835 PWM CONTROLLER WITH BUILT-IN HIGH VOLTAGE DIP IC

  • Input Voltage: Typically used in designs with wide input voltage ranges (e.g., 85V to 265V AC for universal input power supplies).
  • Switching Frequency: Around 65 kHz, which can vary due to frequency jittering.
  • Output Power: Suitable for low-power designs (ranging from a few watts to 24W, depending on application).
  • Standby Power Consumption: Very low, typically <100mW.
  • Operating Temperature Range: Typically −40°C to +85°C.
  • Output Voltage Regulation: Tight regulation, especially when used in primary-side control configurations.

    Package Includes

    • 1 x SD6835 PWM CONTROLLER WITH BUILT-IN HIGH VOLTAGE DIP IC

    Extra Information
    Country of Origin China
    Imported By ElectroSource Private Limited
