  • MCP601 Single Supply CMOS Op Amp

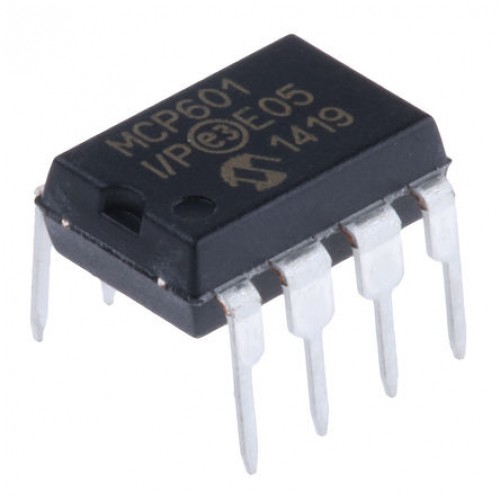

Product Images are shown for illustrative purposes only and may differ from actual product.

MCP601 Single Supply CMOS Op Amp

  • Stock: 8
  • SKU: 0645 | DAA049
  • Rs. 64.90 (inc GST)
    Rs.55.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

MCP601 Single Supply CMOS Op-Amp

MCP601 operational amplifier (op amp) has a gain bandwidth product of 2.8 MHz with low typical operating current of 230 uA and an offset voltage that is less than 2 mV.

The MCP601 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain, and rail-to-rail output swing. The MCP601 operates with a single supply voltage that can be as low as 2.7V, while drawing less than 325 of quiescent current. MCP601 Opamp is available in standard 8-lead PDIP, SOIC, TSSOP and 5-lead SOT-23A packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications.

Features of MCP601 Single Supply CMOS Op-Amp

  • Low Input Bias Current :1 pA (typ.)

  • Gain-Bandwidth Product : 2.8 MHz

  • Low Quiescent Current : 230 µA/amplifier (typical)

  • Low Input Offset Voltage : 2 mV (max.)

  • Unity Gain Stable

  • Rail to Rail Output

  • Extended Temperature Range

  • Temp. Range:-40°C to +125°C

  • Vos Max : 2000(µV)

  • Iq Typical : 230(µA)

  • Iq Max : 325(µA)

  • GBWP : 2800(kHz)

  • Operating Voltage Range : 2.7 to 6.0(V)

  • Input Voltage Noise Density : 29(nV/rt(Hz))

  • PSRR Min : 80(dB)

  • CMRR Min : 75(dB)

  • Vos/Ta : 2.5(uV/°C)

  • Ib : 1(pA)

  • Aol : 110(dB)

  • PM : 50(deg)

  • Isc : 22(mA)

  • Slew Rate : 2.3(V/uS)
