  • TC4428 Power MOSFET Driver

Product Images are shown for illustrative purposes only and may differ from actual product.

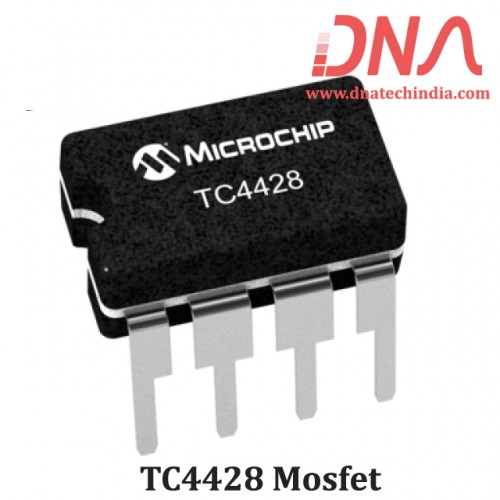

TC4428 Power MOSFET Driver

  • Stock: Out Of Stock
  • SKU: 0992 | DAA031
  • Rs. 128.62 (inc GST)
    Rs.109.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

TC4428 Power MOSFET Driver

The TC4428 is improved versions of the earlier TC428 family of MOSFET driver.

The TC4426/TC4427/TC4428 devices have matched rise and fall times when charging and discharging the gate of a MOSFET.

These devices are highly latch-up resistant under any conditions within their power and voltage ratings. They are not subject to damage when up to 5V of noise spiking (of either polarity) occurs on the ground pin. They can accept, without damage or logic upset, up to 500 mA of reverse current (of either polarity) being forced back into their outputs. All terminals are fully protected against Electrostatic Discharge (ESD) up to 2.0 kV. The TC4426/TC4427/TC4428 MOSFET drivers can easily charge/discharge 1000 pF gate capacitances in under 30 ns. These devices provide low enough impedances in both the On and Off states to ensure the MOSFET’s intended state is not affected, even by large transients.

Other compatible drivers are the TC4426A/TC4427A/ TC4428A family of devices. The TC4426A/TC4427A/TC4428A devices have matched leading and falling edge input-to-output delay times, in addition to the matched rise and fall times of the TC4426/TC4427/ TC4428 devices.

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.


If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India.

Features of TC4428

  • High Peak Output Current : 1.5A

  • Wide Input Supply Voltage Operating Range : - 4.5V to 18V

  • High Capacitive Load Drive Capability : 1000 pF in 25 ns (typical)

  • Short Delay Times : 40 ns (typical)

  • Matched Rise and Fall Times

  • Low Supply Current :

            - With Logic ‘1’ Input – 4 mA

            - With Logic ‘0’ Input – 400 μA

  • Low Output Impedance : 7ohm

  • Latch-Up Protected : Withstands 0.5A Reverse Current

  • Input Withstands Negative Inputs Up to 5V

  • Electrostatic Discharge (ESD) Protected : 2.0 kV

  • Space-saving 8-Pin MSOP and 8-Pin 6x5 DFN-S Packages

Applications of TC4428

  • Switch Mode Power Supplies

  • Line Drivers

  • Pulse Transformer Drive
