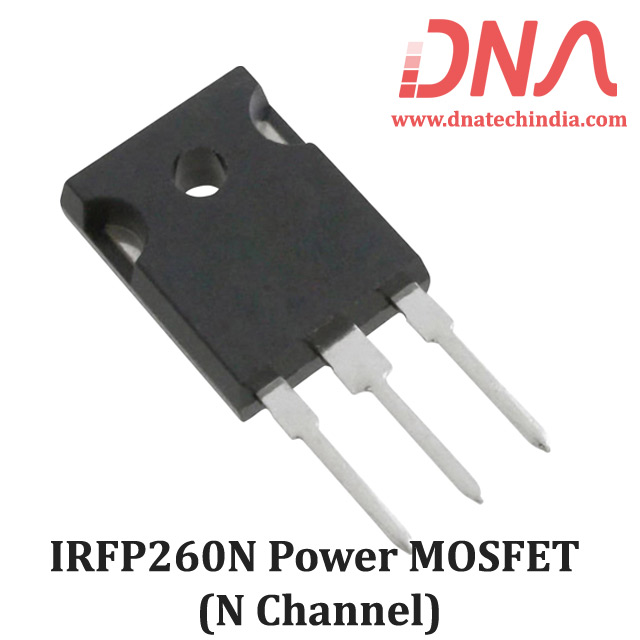

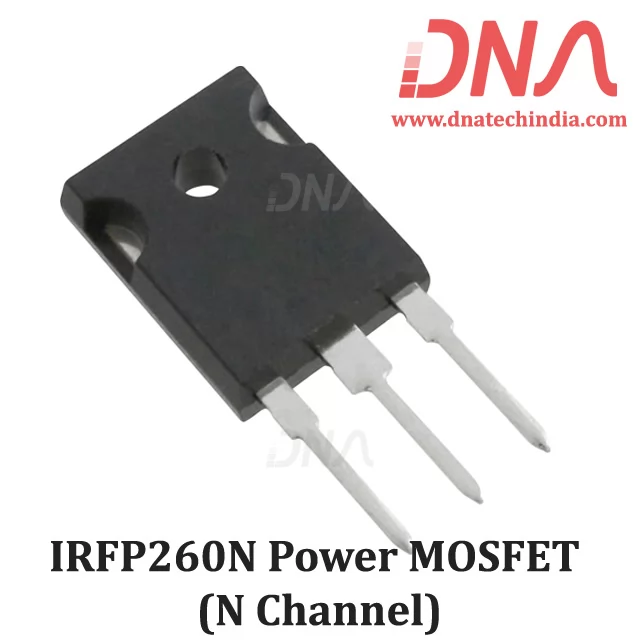

IRFP260N N Channel Power MOSFET

IRFP260N is a 200 Voly Single N-Channel HEXFET Power MOSFET in a TO-247AC package

IRFP260N Power MOSFET is a Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

IRFP260N N Channel Power MOSFET comes in TO-247 Package. The TO-247 package is preferred for commercial-industrial applications where higher power levels preclude the use of TO-220 devices. The TO-247 is similar but superior to the earlier TO-218 package because of its isolated mounting hole

DNA Solutions has large collection of various types of MOSFET and IGBT's. Check our complete collection of MOSFET and IGBT.

Features of IRFP260N Power MOSFET

• Advanced Process Technology

• Dynamic dv/dt Rating

• 175°C Operating Temperature

• Fast Switching

• Fully Avalanche Rated

• Ease of Paralleling

• Simple Drive Requirements

• I_D @ T_C = 25°C Continuous Drain Current, V_GS @ 10V 50 A

• I_D @ T_C = 100°C Continuous Drain Current, V_GS @ 10V 35 A

• I_DM Pulsed Drain Current 200 A

• P_D @T_C = 25°C Power Dissipation 300 W

• Linear Derating Factor 2.0 W/°C

• V_GS Gate-to-Source Voltage ±20 V

• E_AS Single Pulse Avalanche Energy 560 mJ

• I_AR Avalanche Current 50 A

• E_AR Repetitive Avalanche Energy 30 mJ

• dv/dt Peak Diode Recovery dv/dt 10 V/ns
