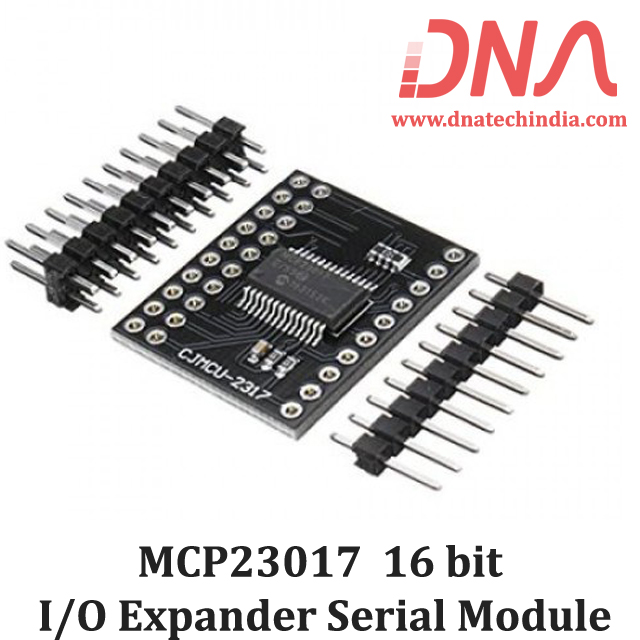

MCP23017 16 bit I/O Expander Serial Module
- Stock: 1
- Brand: Generic
- SKU: 1619 | DAB052
-
Rs. 1,898.00 (inc GST)
Rs.1,608.48 + GSTQty :
| Also Available: Humidity & Temperature Sensor Case(Black) in Stock |
GST Invoice: Available for all purchases; eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
MCP23017 16 bit I/O Expander Serial Module
MCP23017 I2C Serial Interface 16 bit I/O Expander Serial Module
This module is the 16 way IO extension module of the I2C interface, and built in the MCP23017 chip of MicroChip. The function of the chip is complete. Each IO can be arbitrarily configured as input or output.
We have Various sizes of IO Expansion and Opto-Isolator Modules. Check out our complete collection of IO Expansion and Opto-Isolator Modules.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
MCP23017 Expander Serial Module Features
- 16-bit remote bidirectional I/O port
- I/O pins default to input- High-speed I2C™ interface (MCP23017)
- 100 kHz - 400 kHz - 1.7 MHz- High-speed SPI interface (MCP23S17)
- 10 MHz (max.)- Three hardware address pins to allow up to eight devices on the bus
- Configurable interrupt output pins
- Configurable as active-high, active-low or open-drain- INTA and INTB can be configured to operate independently or together
- Configurable interrupt source
- Interrupt-on-change from configured register defaults or pin changes- Polarity Inversion register to configure the polarityof the input port data
- External Reset input
- Low standby current: 1 µA (max.)
- Operating voltage:
- 1.8V to 5.5V @ -40°C to +85°C - 2.7V to 5.5V @ -40°C to +85°C - 4.5V to 5.5V @ -40°C to +125°C
- 16-bit remote bidirectional I/O port
- High-speed I2C™ interface (MCP23017)
- High-speed SPI interface (MCP23S17)
- Three hardware address pins to allow up to eight devices on the bus
- Configurable interrupt output pins
- INTA and INTB can be configured to operate independently or together
- Configurable interrupt source
- Polarity Inversion register to configure the polarityof the input port data
- External Reset input
- Low standby current: 1 µA (max.)
- Operating voltage:
Package included :
- 1 x CJMCU-2317 MCP23017 I2C Serial Interface 16 bit I/O Expander Serial Module
