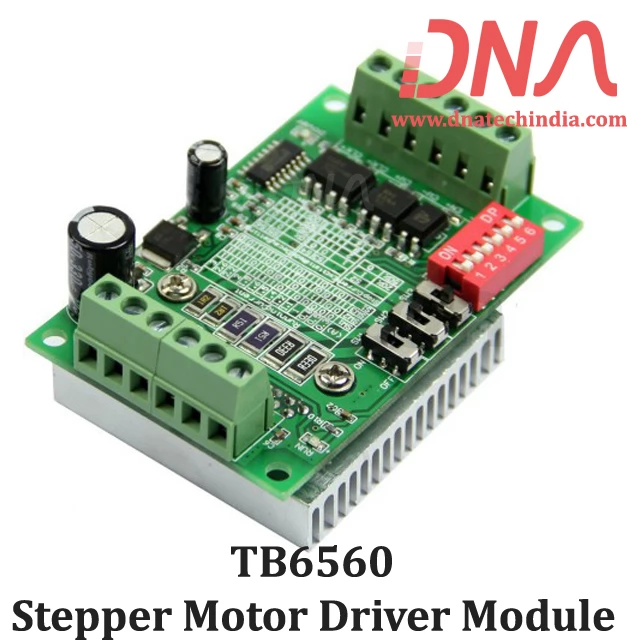

  • TB6560 stepper motor driver module

Product Images are shown for illustrative purposes only and may differ from actual product.

TB6560 stepper motor driver module

  • Product Code: 1394
  • Availability: 5
  • Price :

    Rs.619.50 (inc GST)

    Qty :

  • Quantity Pricing (inc GST)

    3 + 604.02 7 + 588.53 10 + 573.04 20 + 557.55

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Same day dispatch for Most orders if payment done before 4 pm. Delivery Normally takes 2 to 7 working days depending upon your location.

TB6560 stepper motor driver module

Tb6560 driver board is a single axis controller stepper motor driver for Raspberry Pi, Arduino  and other micro-controllers. This module features low oscillation, high-performance forward and reverse driving of a two-phase bipolar stepping motor using only a clock input signal. Suitable for 2-phase Nema 17 and Nema 23 stepper motor up to 3 Ampere current rating.


Specifications of TB6560 stepper motor driver module

  • Rated maximum output: ± 3A, peak 3.5A.

  • Working voltage: DC 10V-35V.

  • Recommended to use a switching power supply: DC24V power supply

  • 6N137 high-speed optical coupling, guarantee high speed without losing step.

  • Stepping: Full step, ½-step, 1/8-step, 1/16-step, a maximum of 16 micro steps.
