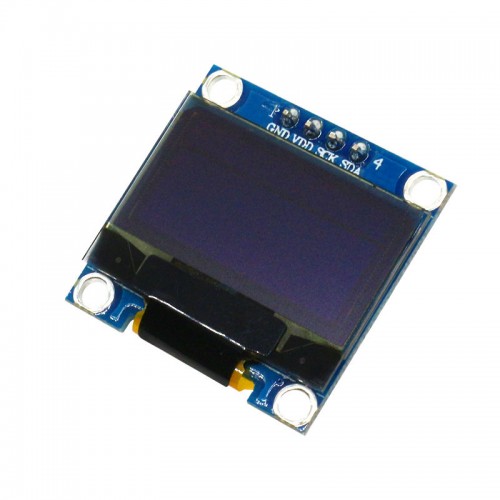

0.96 Inch 4Pin 128X64 Blue Color OLED Display Module

Write a review | 0 reviews

Stock: 2
Availability: InStock priceValidUntil: 2026-02-25
Brand: Generic
SKU: 1003 | DAA879

Rs. 322.14 (inc GST)
Rs.273.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases — eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

0.96 Inch 4Pin 128X64 Blue Color OLED Display Module

0.96 Inch 4Pin 128X64 Blue Color OLED Display Module

The display module can be interfaced with any microcontroller using SPI/IIC protocols. It is having a resolution of 128x64. The package includes display board,display, 4 pin male header pre-soldered to board.

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.

OLEDs basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO). The organic materials compose a multi-layered thin film, which includes the Hole Transporting Layer (HTL), Emission Layer (EML) and the Electron Transporting Layer (ETL). By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively. The holes and electrons combine inside the EML to form excitons, after which electro luminescence occurs. The transfer material, emission layer material and choice of electrode are the key factors that determine the quality of OLED components.

Features of 0.96 Inch 4Pin 128X64 Blue Color OLED Display Module

Size : 0.96 inch
Resolution : 128X64
Color : Blue
Viewing angle : greater than 160 degrees
Supported platforms : for arduino, 51 series, MSP430 series, STIM32 / 2, SCR chips
Low power consumption : 0.04W during normal operation
Support wide voltage : 3.3V-5V DC
Working temperature : -30-80 degrees
Volume : 27MM * 27MM * 4.1MM
Driver IC : SSD1306
Communication : IIC, only two I / O ports
No font : The software takes word modulo
Backlight : OLED self light, no backlight

Interface pin for 0.96 Inch 4Pin 128X64 Blue Color OLED Display Module

VCC : 3.3 volts - 5 Volts
GND : Ground
SCL : Serial Clock
SDA : Serial Data
