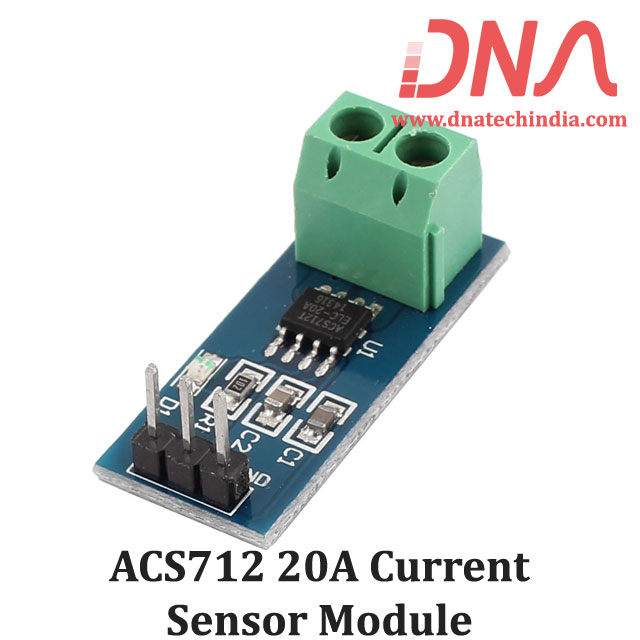

ACS712 20 Amp Current Sensor Module

Write a review | 2 reviews

Stock: 100
Availability: InStock priceValidUntil: 2026-04-19
Brand: Generic
SKU: 264 | DAA680

Rs. 86.14 (inc GST)
Rs.73.00 + GST

Qty :
Qty Qty

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

Description

ACS712 20 Amp Current Sensor Module

ACS712 20A Current Sensor Module for AC/DC sensing with high accuracy and isolation.

The ACS712 20 Amp Current Sensor Module offers a precise solution for measuring AC and DC currents. This breakout board features a Hall effect sensor that provides accurate current measurements up to 20 Amperes. It is ideal for applications such as motor control, load detection, and switch mode power supplies. The robust design ensures it can withstand overcurrent conditions, making it suitable for various industrial and commercial applications.

This module outputs an analog voltage signal proportional to the sensed current, requiring a 5V DC supply. Its compatibility with Arduino and other microcontrollers simplifies integration into your projects. Please note that while the ACS712 is rated for 2.1kV isolation, the PCB is not designed for high voltage applications, ensuring safety in your designs.

For those looking to implement reliable current sensing in their electronic projects, the ACS712 20 Amp Current Sensor Module is an essential component. Explore how this sensor can enhance your applications with its effective performance and ease of use.

Discover the Allegro brand at DNA, your trusted retailer for Current and Voltage Sensors. Explore our range of reliable products to meet your sensing needs. Check other "Current and Voltage Sensor" that we have in stock.

At DNA, we cater to all your electronic component needs. If you can't find specific parts, let us know. We can import them for you. Explore related items like LCDs, Development Modules, and more. Contact Us.

Features of ACS712 20 Amp Current Sensor Module

Precise current measurement
Supports AC and DC
Compatible with Arduino
Robust design for overcurrent protection
Analog output signal

Specification of ACS712 20 Amp Current Sensor Module

Current sensing range: 20A
Supply voltage: 5V DC
Isolation rating: 2.1kV
Output: Analog voltage
Package type: Breakout board

Applications of ACS712 20 Amp Current Sensor Module

Motor control
Load detection
Switch mode power supplies
Over current protection
Industrial automation

Package Includes

1 X ACS712 20 Amp Current Sensor Module

Extra Information
Country of Origin	China
Imported By	ElectroSource Private Limited
