• MCP604 Single Supply CMOS Op Amp

Product Images are shown for illustrative purposes only and may differ from actual product.

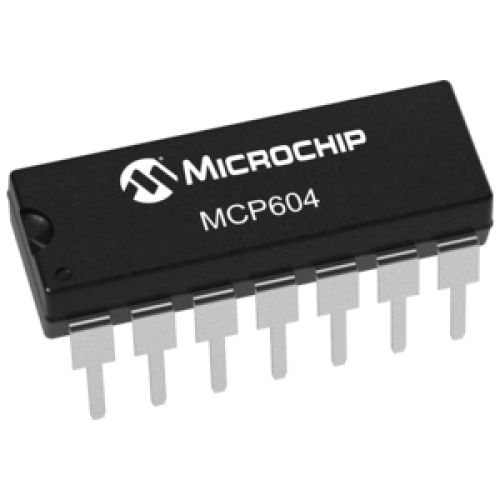

MCP604 Single Supply CMOS Op Amp

  • Stock: Out Of Stock
  • SKU: 0643 | DAA051
  • Rs. 64.90 (inc GST)
    Rs.55.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

MCP604 Single Supply CMOS Op Amps

The MCP604 quad operational amplifier (op amp) has a gain bandwidth product of 2.8 MHz with low typical operating current of 230uA.

The MCP604 uses Microchip's advanced CMOS technology, which provides low bias current, high-speed operation, high open-loop gain and rail-to-rail output swing. The MCP604 operates with a single supply voltage that can be as low as 2.7V, while drawing less than 325 of quiescent current per amplifier. MCP604 Opamp is available in standard 14-lead PDIP, SOIC and TSSOP packages. This amplifier is ideal for industrial process control, low-power battery-operated devices, portable equipment, data acquisition equipment, test equipment and low-end audio applications.

Features of MCP604 Single Supply CMOS Op Amp

  • Single-Supply : 2.7V to 6.0V

  • Rail-to-Rail Output

  • Input Range Includes Ground

  • Gain Bandwidth Product : 2.8 MHz (typical)

  • Unity-Gain Stable

  • Low Quiescent Current : 230 µA/amplifier (typical)

  • Chip Select (CS) : MCP603 only

  • Temperature Ranges :

    • Industrial : -40°C to +85°C

    • Extended : -40°C to +125°C

Applications of MCP604 Single Supply CMOS Op Amp

  • Portable Equipment

  • A/D Converter Driver

  • Photo Diode Pre-amp

  • Analog Filters

  • Data Acquisition

  • Notebooks and PDAs

  • Sensor Interface

Related Links

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
