6N136 Optocoupler

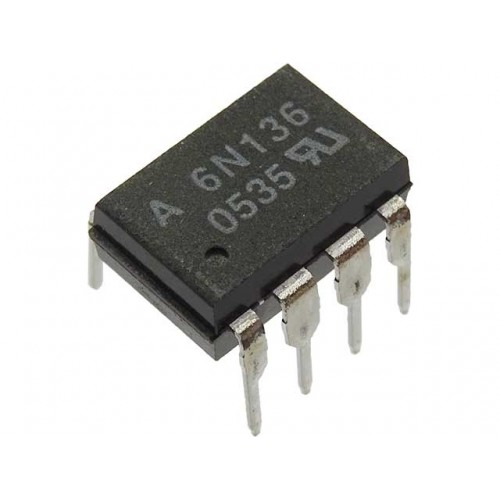

The 6N136 is an optocoupler with a GaAIAs infrared emitting diode, optically coupled with an integrated photo detector which consists of a photo diode and a high-speed transistor in a DIP8 plastic package.

Signals can be transmitted between two electrically separated circuits up to frequencies of 2 MHz. The potential difference between the circuits to be coupled should not exceed the maximum permissible reference voltages.

Features of 6N136 Optocoupler

• Isolation test voltages : 5300 VRMS

• TTL compatible

• High bit rates : 1 Mbit/s

• High common-mode interference immunity

• Bandwidth 2 MHz

• Open-collector output

• External base wiring possible

• Reverse voltage (VR) 5V

• Forward current (IF) 25mA

• Storage temperature range (Tstg) - 55 to +150°C

• Ambient temperature range (Tamb) - 55 to +100°C

• Soldering temperature max. ≤ 10 s, dip soldering ≥ 0.5 mm from case bottom (Tsld) 260°C

• Maximum output current 16mA

• Base current (IB) 5mA
