Product Images are shown for illustrative purposes only and may differ from actual product.
DWIN DMG10768C150 15.0" Smart Capacitive Touchscreen Display
-
Rs. 29,818.60 (inc GST)
Rs.25,270.00 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.

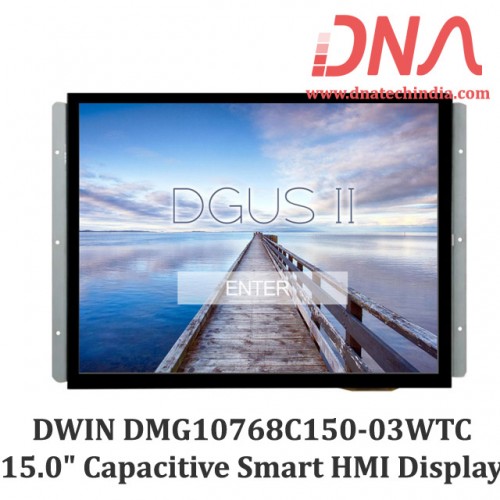

DWIN DMG10768C150-03WTC 15.0" Capacitive Smart HMI Display
DWIN DMG10768C150-03WTC 15.0" Smart Capacitive Touchscreen HMI Display with UART Interface
The Dwin's DMG10768C150 is a 15.0" Smart HMI Display with Capacitive Touch. This smart UART TFT display module can be programmed using DWIN DGUS software.
DWIN 15.0" Capacitive Smart display is very easy to use and integrate with your embedded circuit with a simple serial UART interface. DWIN Displays are high quality and cost effective smart HMI touchscreens. The DWIN DMG10768C150 15.0" Smart Capacitive Touchscreen Display can easily be interfaced with microcontrollers & controller boards like Arduino Uno, Arduino Nano, Arduino Mega, ESP8266, ESP32, PIC Microcontrollers, 8051 family of microcontrollers, etc.

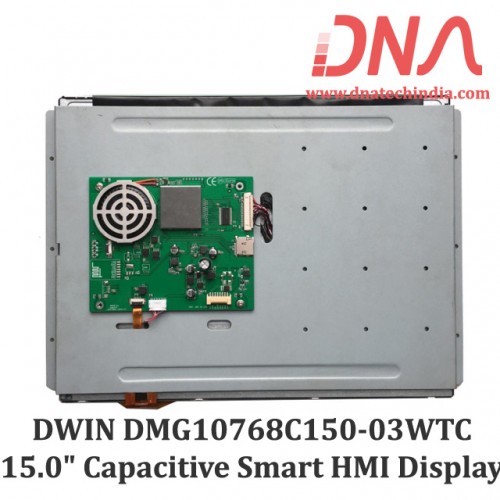

This Smart displays are based on T5/T5L ASIC chip which is a dual core high performance GUI Asic which supports DGUS & OS development mode. DGUS is the abbreviation of a Graphic Application Service Software from DWIN Technology. It is an intelligent GUI software completely innovated by DWIN Technology, and a special software that is unique to DWIN Technology and is solidified in software. Using the DGUS Software tool you can design amazing GUI's without writing a single line of code.
DNA Solutions has various types of SMART HMI display from DWIN & Nextion both of which can be easily interfaced to any microcontroller with serial Interface. Check our our collection of DWIN displays & Nextion displays.
If you are in Nasik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of DWIN DMG10768C150 15.0" SMART HMI DISPLAY
- Part Number: DMG10768C150
- Size: 15.0"
- Touch Type: Capacitive
- Resolution: 1024x768
- Interface: TTL/RS232
- Grade: Commercial
- Color: 16.7M Colors; 24 Bit
- Dimensions: 351.1 mm (W) x 253.5 mm (H) x 26.0 mm (T)
- Backlight: LED
- Brightness: 300 nit
- Operating Voltage: 12 Volts
- Operating Current: 250ma to 720ma
- Working Temperature: -20 to 70°C
Related Links
Package Includes
1 x DWIN DMG10768C150 15.0" Smart Capacitive Touchscreen Display
