  • L6219 Stepper Motor Driver IC

Product Images are shown for illustrative purposes only and may differ from actual product.

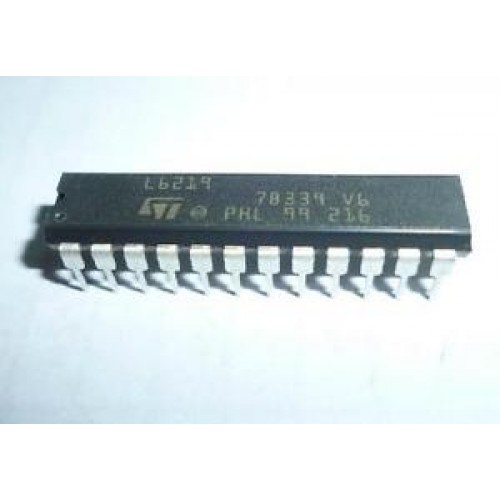

L6219 Stepper Motor Driver IC

  • Stock: Out Of Stock
  • SKU: 1583 | DAA423
  • Rs. 141.60 (inc GST)
    Rs.120.00 + GST

    Qty :

GST Invoice on all Purchase. So you will be eligible to take input tax credit.

IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com.

Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location.

L6219 Stepper Driver IC

The E-L6219 is a Bipolar Monolithic Integrated Circuit/Stepper Motor Driver, intended to control and drive both winding of a bipolar Stepper Motor or bi-directionally control two DC motors.

The E-L6219 with a few external components forms a complete control and drive circuit for LS-TTL or microprocessor controlled stepper motor system. The power stage is a dual full bridge capable of sustaining 46V and including four diodes for current recirculation. A cross conduction protection is provided to avoid simultaneous cross conduction during switching current direction. An internal pulse-width-modulation (PWM) controls the output current to 750mA with peak start-up current up to 1A. Wide range of current control from 750mA (each bridge) is permitted by means of two logic inputs and an external voltage reference. A phase input to each bridge determines the load current direction. A thermal protection circuitry disables the outputs if the chip temperature exceeds safe operating limits.

L6219 IC Features

  • Able to drive both windings of bipolar stepper motor
  • 10 to 46V Wide voltage range
  • Half-step, full-step and micro stepping mode
  • Built-in protection diodes
  • Internal PWM current control
  • Low output saturation voltage
  • Designed for unstabilized motor supply voltage
  • Internal thermal shutdown
  • Warnings : ESD sensitive device, take proper precaution while handling the device.

L6219 IC Specifications

  • Motor Type : Stepper
  • No. of Outputs : 4Outputs
  • Output Current : 1A
  • Driver Case Style : DIP
  • No. of Pins : 24Pins
  • Supply Voltage Min : 4.75V
  • Supply Voltage Max : 5.25V
  • Operating Temperature Min : 0°C
  • Operating Temperature Max : 70°C
