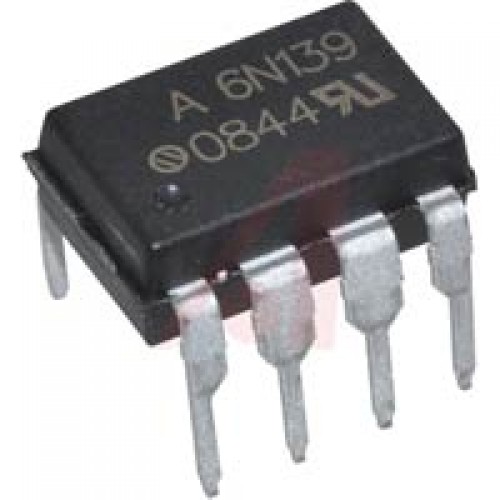

6N139 High Speed Optocoupler


Write a review | 1 reviews

  • Stock: 17

    Availability: InStock priceValidUntil: 2026-07-04

  • SKU: 662 | DAA197

Availability: InStock priceValidUntil: 2026-07-04

  • Rs. 37.76 (inc GST)
    Rs.32.00 + GST

    Qty :

GST Invoice: Available for all purchases; eligible for input tax credit.

Delivery: 2–8 days across India. No MOQ required.

Bulk Orders: Need a larger quantity or item not in stock? Email: dnatechindia [at] gmail.com

Import Service: We import a wide range of electronic components on request.

6N139 High Speed Opto-coupler

6N139 High Speed Opto-coupler is High common mode transient immunity and very high current ratio together with 5300 VRMS insulation are achieved by coupling and LED with an integrated high gain photo detector in an eight pin dual-in-line package. Separate pins for the photo diode and output stage enable TTL compatible saturation voltages with high speed operation. Access to the base terminal allows adjustment to the gain bandwidth. The 6N138 is ideal for TTL applications since the 300 % minimum current transfer ratio with an LED current of 1.6 mA enables operation with one unit load-in and one unit load-out with a 2.2 kO pull-up resistor. The 6N139 optocoupler is best suited for low power logic applications involving CMOS and low power TTL. A 400 % current transfer ratio with only 0.5 mA of LED current is guaranteed from 0 °C to 70 °C.

Features of 6N139 High Speed Optocoupler

  • High current transfer ratio, 300 %

  • Low input current, 0.5 mA

  • High output current, 60 mA

  • Isolation test voltage, 5300 VRMS

  • TTL compatible output, VOL = 0.1 V

  • High common mode rejection, 500 V/µs

  • Adjustable bandwidth-access to base

Applications of 6N139 High Speed Optocoupler

  • Microprocessor system interface

  • PLC, ATE input / output isolation

  • EIA RS232 line receiver

  • TTL, CMOS voltage level translation

  • Multiplexed data transmission

  • Digital control power supply

  • Ground loop and electrical noise elimination

DOWNLOAD 6N139 High Speed Opto-Coupler Datasheet

Extra Information
Country of Origin China
Imported By ElectroSource Private Limited
