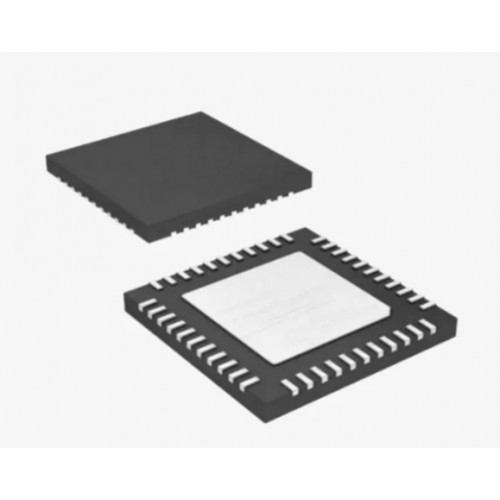

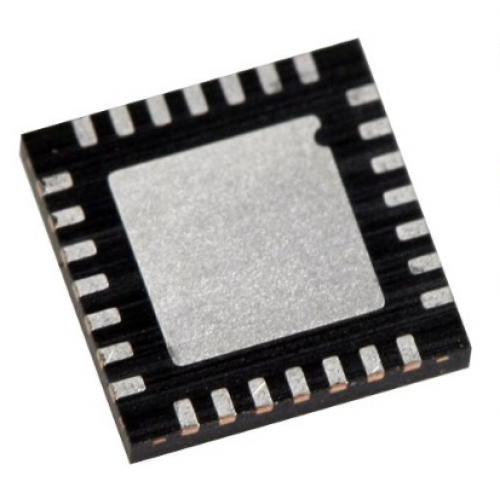

Product Images are shown for illustrative purposes only and may differ from actual product.
A4988 Micro stepping Bipolar Stepper Motor Driver IC
- Stock: 30 InStock
- SKU: 5085 | DAF306
-
Rs.
105.02 (inc GST)
Rs.89.00 + GSTQty :
GST Invoice on all Purchase. So you will be eligible to take input tax credit. |
IF component not in Stock or require more quantity or want to buy in bulk e-mail us your requirements on: dnatechindia "at" gmail.com. |
| Shipping : Due to Covid-19 situation delivery will be affected. Delivery period due to covid-19 issue will be from 4 - 12 days depending upon your location. |
A4988 Micro stepping Bipolar Stepper Motor Driver IC
A4988 Micro stepping Bipolar Stepper Motor Driver IC
The A4988 is a complete micro stepping motor driver with built-in translator for easy operation. It is designed to operate bipolar stepper motors in full-, half-, quarter-, eighth-, and sixteenth-step modes, with an output drive capacity of up to 35 V and ±2 A. The A4988 includes a fixed off-time current regulator which has the ability to operate in slow or mixed decay modes. The translator is the key to the easy implementation of micro stepping; by simply inputting a step pulse, the driver controls the motor based on the selected step resolution.
DNA solutions, Nashik has various types of IC's. Check out our complete collection of IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of A4988 Micro stepping Bipolar Stepper Motor Driver IC
- Micro stepping capability: The A4988 supports full, half, quarter, eighth, and sixteenth micro stepping modes for finer motor control and smoother operation.
- Built-in translator: Simplifies control over stepper motors by converting step and direction signals into corresponding motor movements.
- Adjustable current control: Allows control over the maximum output current with a potentiometer, protecting the motor from overcurrent.
- Over-temperature shutdown: Protects the driver from damage due to excessive temperature rise.
- Under-voltage lockout (UVLO): Prevents the driver from operating below a certain voltage level to ensure reliable performance.
- Crossover-current protection: Prevents the shorting of outputs when switching phases, ensuring safe operation.
Specifications of A4988 Micro stepping Bipolar Stepper Motor Driver IC
- Motor Voltage (VMOT): 8V to 35V.
- Logic Voltage (VDD): 3.3V to 5V.
- Maximum Output Current: Up to 2A per coil (with proper cooling).
- Micro stepping Modes: Full-step, half-step, quarter-step, eighth-step, sixteenth-step.
- Step Resolution Control: Configurable using three input pins (MS1, MS2, MS3).
- Current Sensing: Via two resistors, one for each motor coil.
Package Includes
- 1 x A4988 Micro stepping Bipolar Stepper Motor Driver IC
