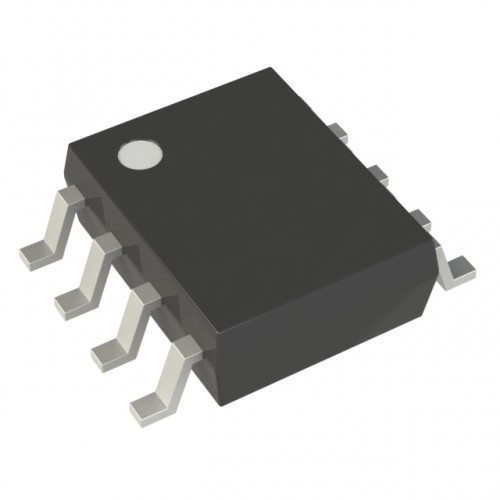

M24C02-RMN6P EEPROM Memory SMD IC

M24C02-RMN6P EEPROM Memory SMD IC

The M24C02-RMN6P is a 2-Kbit (256 × 8) serial EEPROM from STMicroelectronics, using an I²C-compatible two-wire interface. It operates from 1.8V to 5.5V, supports up to 1 MHz clock speed, and features byte and page write capability. With a typical 4 million write cycle endurance and 200-year data retention, it's highly reliable for long-term storage. The device comes in an SO-8N package, ideal for space-constrained designs. Common uses include storing configuration, calibration, and log data in consumer, industrial, and IoT applications. Integrated write protection adds data integrity in critical environments.

DNA solutions, Nashik has various types of EEPROM IC's. Check out our complete collection of EEPROM IC's.

• Compatible with I²C bus standard

• Byte and Page Write (up to 4 bytes per page)

• Random and Sequential Read operations

• Hardware Write Protection via external pin

• Low power consumption

• High reliability with long data retention and endurance

Specifications of M24C02-RMN6P EEPROM Memory SMD IC

• Memory Size: 2 Kbit

• Memory Organization: 256 bytes

• Interface Type: I²C-compatible serial interface

• Operating Voltage Range: 1.8V to 5.5V

• Clock Frequency: Up to 1 MHz

• Write Cycle Time: 5 ms

• Write Endurance: 4 million write cycles per byte

• Temperature Range: -40°C to +85°C (Industrial)

• ESD Protection: HBM > 4 kV

Applications of M24C02-RMN6P EEPROM Memory SMD IC

• Configuration and Calibration Storage

• Consumer Electronics

• Embedded System Settings

• IoT Devices

• Medical Devices

• Networking Equipment

Package Includes

      1 x M24C02-RMN6P EEPROM Memory SMD IC
