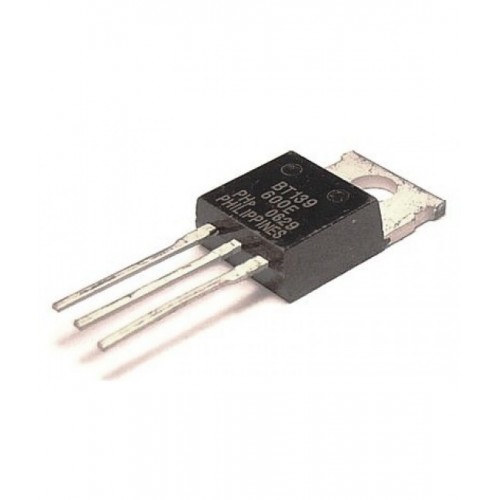

BT139 TRIAC

BT139 is a general purpose Triac normally used for switching and phase control application.

Planar passivated sensitive gate four quadrant triac in a TO-220AB package intended for use in applications requiring high bidirectional transient and blocking voltage capability and high thermal cycling performance. Typical applications include

• Motor control

• Industrial and domestic lighting,

• Heating and static switching

BT139 TRIAC is sensitive gate "series E" triac is intended to be interfaced directly to micro-controllers, logic integrated circuits and other low power gate trigger circuits.

Features of BT139 Triac

• Direct triggering from low power drivers and logic ICs

• High blocking voltage capability

• Planar passivated for voltage ruggedness and reliability

• Sensitive gate

• Triggering in all four quadrants

• TRIAC, 16A, 800V

• Thyristor/Triac type : Triac

• Voltage, Vdrm : 800V

• Current, It rms : 16A

• Current, Gate Trigger, Igt, (Q1), t2+g+ : 35mA

• Current, Itsm (50Hz) :155A

• Current, Itsm (60Hz) :170A

• Package/Case :TO-220AB
