Product Images are shown for illustrative purposes only and may differ from actual product.

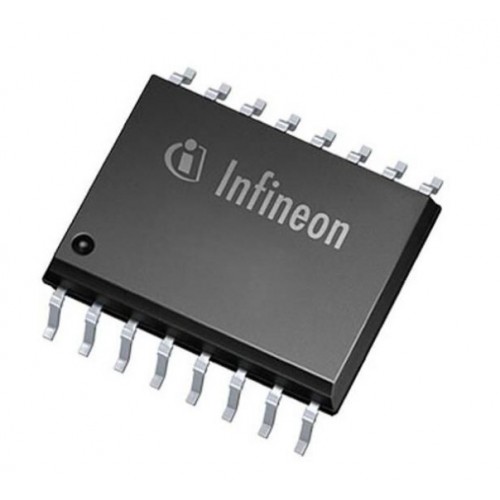

1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC
- Stock: Out Of Stock
- SKU: 8212 | DAH830
-
Rs. 407.98 (inc GST)
Rs.345.74 + GSTQty :
GST Invoice: Available for all purchases — eligible for input tax credit.
Delivery: 2–8 days across India. No MOQ required.
Bulk Orders: Need more quantity or not in stock? Email: dnatechindia [at] gmail.com
Import Service: We import a wide range of electronic components on request.
1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC
1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC
The EiceDRIVERTM F3 Enhanced (1ED332x) family is an isolated gate driver family including protection features, such as short-circuit protection (DESAT), soft-off and active Miller Clamp. The gate driver family provides typical peak output currents of up to 8.5 A. Its short-circuit protection is suitable for both IGBTs and Sic MOSFETs. The active Miller Clamp feature makes it ideal for fast switching applications with Sic MOSFETs and TRENCHSTOP™ IGBT 7 to avoid parasitic turn-on. The appealing protection feature-set increases system safety in many applications.
DNA solutions, Nashik has various types of Gate Driver IC's. Check out our complete collection of Gate Driver IC's.
If you are in Nashik you can buy this Electronic Component at our local shop at New CBS, Nashik or you can place order online and get it delivered at your doorstep anywhere in India. |
Features of 1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC
- High Output Current Capability: Capable of sourcing up to 6 A and sinking up to 8.5 A peak output current, ensuring efficient switching of power devices
- Robust Isolation: Provides an isolation voltage of 5,700 Vrms, ensuring safety and reliability in high-voltage applications
- Desaturation Protection: Equipped with DESAT protection to safeguard power transistors against short-circuit conditions
- Active Miller Clamp: Prevents unintended turn-on of the power transistor by clamping the gate during off-state, enhancing system reliability
Specifications of 1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC
- Supply Voltage Range: Input side (VCC1): 3.3 V to 5 V; Output side (VCC2): 15 V to 30 V
- Propagation Delay: Typical turn-on delay of 80 ns and turn-off delay of 86 ns, facilitating high-speed switching operations
- Operating Temperature Range: -40°C to 125°C, suitable for demanding environmental conditions
- Package: DSO-16 wide body with 8 mm creepage distance, ensuring adequate insulation and spacing for high-voltage applications
Applications of 1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC
- Industrial Motor Drives
- Renewable Energy Systems
- Power Supplies
- Electric Vehicle Charging Stations
Package Includes
1 x 1ED3322MC12NXUMA1-INFINEON-Gate Driver SMD IC
