Transistor as a Switch



The Transistor as a Switch

When used as an AC signal amplifier, the transistors Base biasing voltage is applied in such a way that it always operates within its "active" region, that is the linear part of the output characteristics curves are used. However, both the NPN & PNP type bipolar transistors can be made to operate as "ON/OFF" type solid state switches by biasing the transistors base differently to that of a signal amplifier. Solid state switches are one of the main applications for the use of transistors, and transistor switches can be used for controlling high power devices such as motors, solenoids or lamps, but they can also used in digital electronics and logic gate circuits.

If the circuit uses the Bipolar Transistor as a Switch, then the biasing of the transistor, either NPN or PNP is arranged to operate the transistor at both sides of the I-V characteristics curves we have seen previously. The areas of operation for a transistor switch are known as the Saturation Region and the Cut-off Region. This means then that we can ignore the operating Q-point biasing and voltage divider circuitry required for amplification, and use the transistor as a switch by driving it back and forth between its "fully-OFF" (cut-off) and "fully-ON" (saturation) regions as shown below.

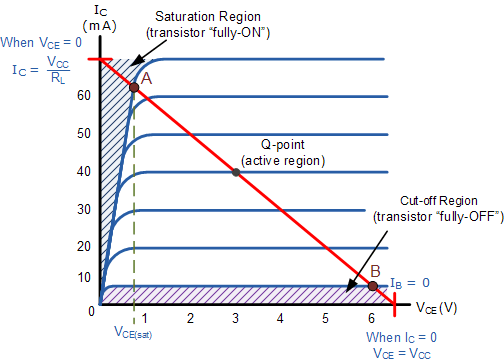

Operating Regions

Transistor_Operating_Regions

The pink shaded area at the bottom of the curves represents the "Cut-off" region while the blue area to the left represents the "Saturation" region of the transistor. Both these transistor regions are defined as:



1. Cut-off Region

Here the operating conditions of the transistor are zero input base current ( IB ), zero output collector current ( IC ) and maximum collector voltage ( VCE ) which results in a large depletion layer and no current flowing through the device. Therefore the transistor is switched "Fully-OFF".



Cut-off Characteristics

Cut-off_Characteristics

















The input and Base are grounded (0v)

Base-Emitter voltage VBE < 0.7V

Base-Emitter junction is reverse biased

Base-Collector junction is reverse biased

Transistor is "fully-OFF" (Cut-off region)

No Collector current flows ( IC = 0 )

VOUT = VCE = VCC = "1"

Transistor operates as an "open switch"

Then we can define the "cut-off region" or "OFF mode" when using a bipolar transistor as a switch as being, both junctions reverse biased, IB < 0.7V and IC = 0. For a PNP transistor, the Emitter potential must be negative with respect to the Base.



2. Saturation Region

Here the transistor will be biased so that the maximum amount of base current is applied, resulting in maximum collector current resulting in the minimum collector emitter voltage drop which results in the depletion layer being as small as possible and maximum current flowing through the transistor. Therefore the transistor is switched "Fully-ON".



Saturation Characteristics

Saturation_Characteristics



















The input and Base are connected to VCC

Base-Emitter voltage VBE > 0.7V

Base-Emitter junction is forward biased

Base-Collector junction is forward biased

Transistor is "fully-ON" (saturation region)

Max Collector current flows (IC = Vcc/RL)

VCE = 0 (ideal saturation)

VOUT = VCE = "0"

Transistor operates as a "closed switch"

Then we can define the "saturation region" or "ON mode" when using a bipolar transistor as a switch as being, both junctions forward biased, IB > 0.7V and IC = Maximum. For a PNP transistor, the Emitter potential must be positive with respect to the Base.

Then the transistor operates as a "single-pole single-throw" (SPST) solid state switch. With a zero signal applied to the Base of the transistor it turns "OFF" acting like an open switch and zero collector current flows. With a positive signal applied to the Base of the transistor it turns "ON" acting like a closed switch and maximum circuit current flows through the device.

An example of an NPN Transistor as a switch being used to operate a relay is given below. With inductive loads such as relays or solenoids a flywheel diode is placed across the load to dissipate the back EMF generated by the inductive load when the transistor switches "OFF" and so protect the transistor from damage. If the load is of a very high current or voltage nature, such as motors, heaters etc, then the load current can be controlled via a suitable relay as shown.



Basic NPN Transistor Switching Circuit

Basic_NPN_Transistor_Switching_Circuit

The circuit resembles that of the Common Emitter circuit we looked at in the previous tutorials. The difference this time is that to operate the transistor as a switch the transistor needs to be turned either fully "OFF" (cut-off) or fully "ON" (saturated). An ideal transistor switch would have infinite circuit resistance between the Collector and Emitter when turned "fully-OFF" resulting in zero current flowing through it and zero resistance between the Collector and Emitter when turned "fully-ON", resulting in maximum current flow. In practice when the transistor is turned "OFF", small leakage currents flow through the transistor and when fully "ON" the device has a low resistance value causing a small saturation voltage (VCE) across it. Even though the transistor is not a perfect switch, in both the cut-off and saturation regions the power dissipated by the transistor is at its minimum.

In order for the Base current to flow, the Base input terminal must be made more positive than the Emitter by increasing it above the 0.7 volts needed for a silicon device. By varying this Base-Emitter voltage VBE, the Base current is also altered and which in turn controls the amount of Collector current flowing through the transistor as previously discussed. When maximum Collector current flows the transistor is said to be Saturated. The value of the Base resistor determines how much input voltage is required and corresponding Base current to switch the transistor fully "ON".



Example No1

Using the transistor values from the previous tutorials of:  β = 200, Ic = 4mA and Ib = 20uA, find the value of the Base resistor (Rb) required to switch the load "ON" when the input terminal voltage exceeds 2.5v.

RB = (Vin - VBE)/IB = (2.5v - 0.7v)/20x10-6 = 90Kohm

The next lowest preferred value is: 82kΩ, this guarantees the transistor switch is always saturated.



Example No2

Again using the same values, find the minimum Base current required to turn the transistor "fully-ON" (saturated) for a load that requires 200mA of current when the input voltage is increased to 5.0V. Also calculate the new value of Rb.

Transistor Base current:

IB = IC / β = 200mA/200 = 1mA

Transistor Base resistance:

RB = (Vin - VBE)/IB = (5.0v - 0.7v)/1x10-3 = 4.3Kohm

Transistor switches are used for a wide variety of applications such as interfacing large current or high voltage devices like motors, relays or lamps to low voltage digital logic IC's or gates like AND gates or OR gates. Here, the output from a digital logic gate is only +5v but the device to be controlled may require a 12 or even 24 volts supply. Or the load such as a DC Motor may need to have its speed controlled using a series of pulses (Pulse Width Modulation). transistor switches will allow us to do this faster and more easily than with conventional mechanical switches.

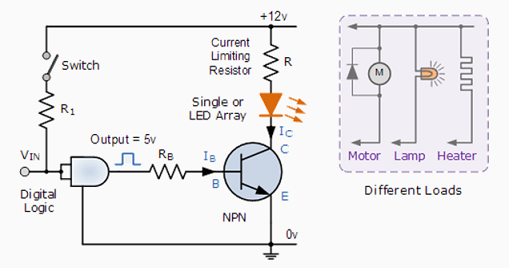

Digital Logic Transistor Switch

Digital_Logic_Transistor_Switch

The base resistor, Rb is required to limit the output current from the logic gate.



PNP Transistor Switch

We can also use PNP transistors as switches, the difference this time is that the load is connected to ground (0v) and the PNP transistor switches power to it. To turn the PNP transistor as a switch "ON" the Base terminal is connected to ground or zero volts (LOW) as shown.

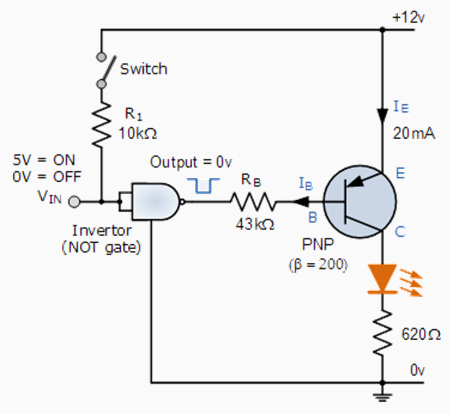

PNP Transistor Switching Circuit

PNP_Transistor_Switching_Circuit



The equations for calculating the Base resistance, Collector current and voltages are exactly the same as for the previous NPN transistor switch. The difference this time is that we are switching power with a PNP transistor (sourcing current) instead of switching ground with an NPN transistor (sinking current).



Darlington Transistor Switch

Sometimes the DC current gain of the bipolar transistor is too low to directly switch the load current or voltage, so multiple switching transistors are used. Here, one small input transistor is used to switch "ON" or "OFF" a much larger current handling output transistor. To maximise the signal gain, the two transistors are connected in a "Complementary Gain Compounding Configuration" or what is more commonly called a "Darlington Configuration" were the amplification factor is the product of the two individual transistors.

Darlington Transistors simply contain two individual bipolar NPN or PNP type transistors connected together so that the current gain of the first transistor is multiplied with that of the current gain of the second transistor to produce a device which acts like a single transistor with a very high current gain for a much smaller Base current. The overall current gain Beta (β) or Hfe value of a Darlington device is the product of the two individual gains of the transistors and is given as:

βTotal = β1 x β2

So Darlington Transistors with very high β values and high Collector currents are possible compared to a single transistor switch. For example, if the first input transistor has a current gain of 100 and the second switching transistor has a current gain of 50 then the total current gain will be 100 x 50 = 5000. An example of the two basic types of Darlington transistor are given below.

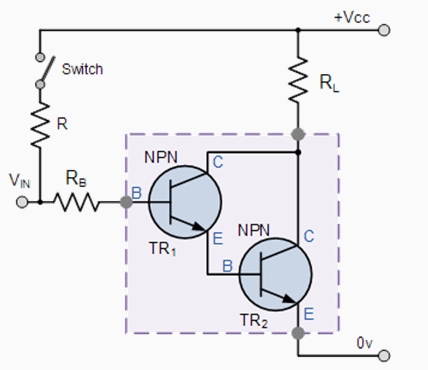

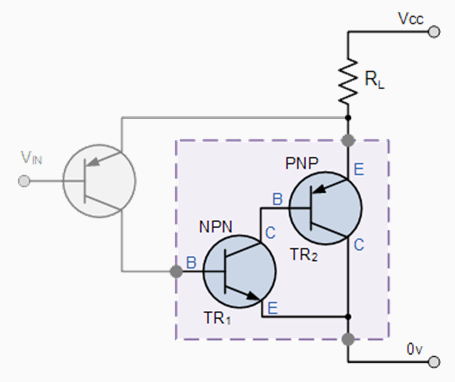

Darlington Transistor Configurations

NPN_Darlington_Output



Complementary_Output
The above NPN Darlington transistor switch configuration shows the Collectors of the two transistors connected together with the Emitter of the first transistor connected to the Base of the second transistor therefore, the Emitter current of the first transistor becomes the Base current of the second transistor. The first or "input" transistor receives an input signal, amplifies it and uses it to drive the second or "output" transistors which amplifies it again resulting in a very high current gain. As well as its high increased current and voltage switching capabilities, another advantage of a Darlington transistor switch is in its high switching speeds making them ideal for use in inverter circuits and DC motor or stepper motor control applications.

One difference to consider when using Darlington transistors over the conventional single bipolar types when using the transistor as a switch is that the Base-Emitter input voltage ( VBE ) needs to be higher at approx 1.4v for silicon devices, due to the series connection of the two PN junctions.



Transistor as a Switch Summary

Then to summarise when using a Transistor as a Switch.

  1. Transistor switches can be used to switch and control lamps, relays or even motors.
  2. When using the bipolar transistor as a switch they must be either "fully-OFF" or "fully-OFF".
  3. Transistors that are fully "ON" are said to be in their Saturation region.
  4. Transistors that are fully "OFF" are said to be in their Cut-off region.
  5. When using the transistor as a switch, a small Base current controls a much larger Collector load current.
  6. When using transistors to switch inductive loads such as relays and solenoids, a "Flywheel Diode" is used.
  7. When large currents or voltages need to be controlled, Darlington Transistors can be used.



In the next tutorial about Transistors, we will look at the operation of the junction field effect transistor known commonly as an JFET. We will also plot the output characteristics curves commonly associated with JFET amplifier circuits as a function of Source voltage to Gate voltage.






Reproduced with permission from Wayne Storr

http://www.electronics-tutorials.ws/transistor/tran_4.html

Written by Wayne Storr
